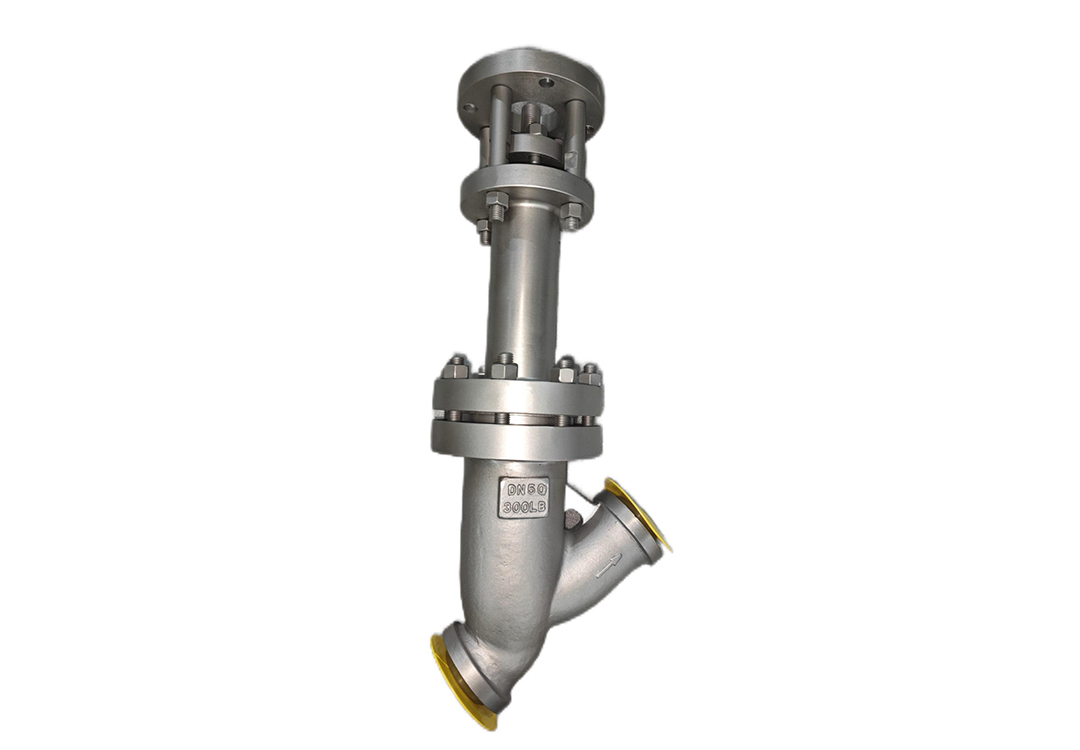

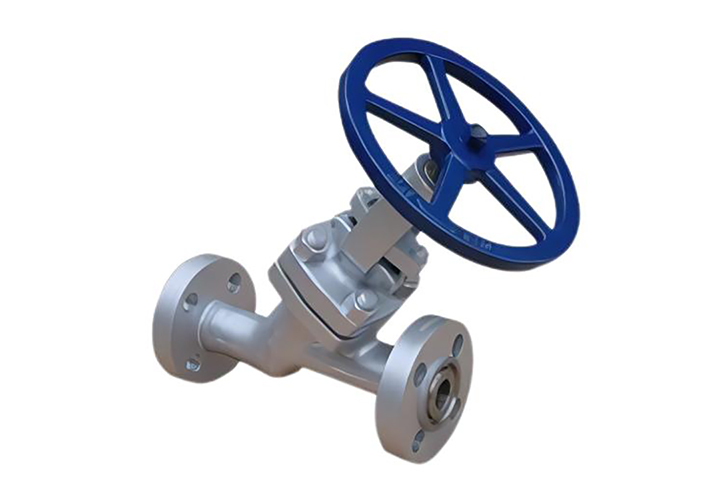

Y-Type Globe Valves

Distinct from the conventional globe valves, Y-type globe valves incorporate a specialized Y-shaped body, which facilitates smooth flow and reduces flow resistance. This innovative design not only ensures more efficient flow dynamics but also extends the service life of the valve. Constructed with a variety of materials, from durable carbon steel to the resilient stainless steel, these valves are versatile enough to meet the rigorous requirements of diverse industrial scenarios. Their ingenious design coupled with their efficient operation makes them especially suitable for configurations with space constraints. Fortified with a strong stem and a cutting-edge bearing architecture, these valves guarantee smooth and consistent operation. In the realm of fluid control, where precision, efficiency, and durability are paramount, Y-type globe valves emerge as an industry favorite.

+86 17357466831

lip@lipvalve.com

Design Advantages

Y-shaped Body: Efficient flow with reduced resistance.

Material Versatility: From robust carbon steel to anti-corrosive stainless steel.

Streamlined Design: Apt for tight spaces and efficient installations.

Optimized Flow: Direct pathway design ensures minimal flow disruption.

Enhanced Service Life: Reduced wear and tear due to smooth flow dynamics.

Reinforced Stem: Ensures precise valve actuation with consistent performance.

Advanced Bearings: Designed for reduced friction and superior operational smoothness.

Technical Parameters

Size	DN15-DN600, 1/2''-24''
Pressure	PN10-PN420, Class150-Class2600
Temperature	-200℃ to 650℃
Connection type	Flange, Thread, Socket weld, Butt weld
Operation mode	Manual, Pneumatic, Electric, Hydraulic, Gear transmission

Materials

Valve Body	Forged	A105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, etc
	Cast	WCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc
Valve Stem		F6a, 17-4PH, XM-19, F304, F316, F347, F904, F51, F53, F310, Monel400, Monel500, N08020, Inconel625, Incoloy825，etc
Valve Disc		A105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, F6a, 17-4PH, XM-19, F304, F316, F347, F904, F51, F53, F310, Monel400, Monel500，Incoloy825，WCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc
Seat Sealing		PTFE, EPDM, NBR, VITON, etc

Design Standards

Valve Body	API 602, ASME B16.34, DIN 3356, BS 1873, GOST 5762, JIS F7305, etc.
Flange	ANSI B16.5, EN 1092-1, JIS B2220, GB/T 9113, ASME B16.47, GOST 12820, DIN 2543-2545, etc.
Connection	ANSI B16.10, ASME B16.25, JIS B2212, GOST 33259, DIN 3202, etc.
Test Standards	API 598, ISO 5208, BS EN 12266, ASME B16.104, GOST 9544-2015, JIS B2003, DIN 3230, etc.

The meticulous selection of design standards for the Y-type globe valve ensures that the product aligns with international quality and safety norms. Adherence to these standards assures the valve's efficiency, durability, and adaptability across a variety of installations and applications.

Recommended

Enquire for more information

Delivering One-Stop

Globe Valve Solutions.

A reputable provider offers more than just a product sale. Lipin provide strong post-purchase support, addressing issues or concerns.

Select Application Scenarios

Before choosing different types of globe valves, please determine their main uses. Whether it is water treatment, petroleum or other industries, different application scenarios will directly affect valve selection.
Choose The Right Valve Type

Globe valves come in many different types. Depending on factors such as flow control and pressure, choose the one that will perform best in your system.
Select Materials

Diversified selection of materials. Choose different materials according to needs. We provide materials ranging from conventional carbon steel to stainless steel to alloy materials, covering basically all valve materials.
Verify Feasibility (Technical Support)

Discuss with engineers and ask experts to verify to confirm that the valve meets technical requirements. Provide professional advice and installation and maintenance guidance
Quality Control

We have a strict quality inspection department. Every link needs to be inspected before entering the next link. We will never miss any link until the product is delivered safely.
After-Sales Service

24-hour online customer service, 2-year warranty or 18 months after installation, whichever comes first.

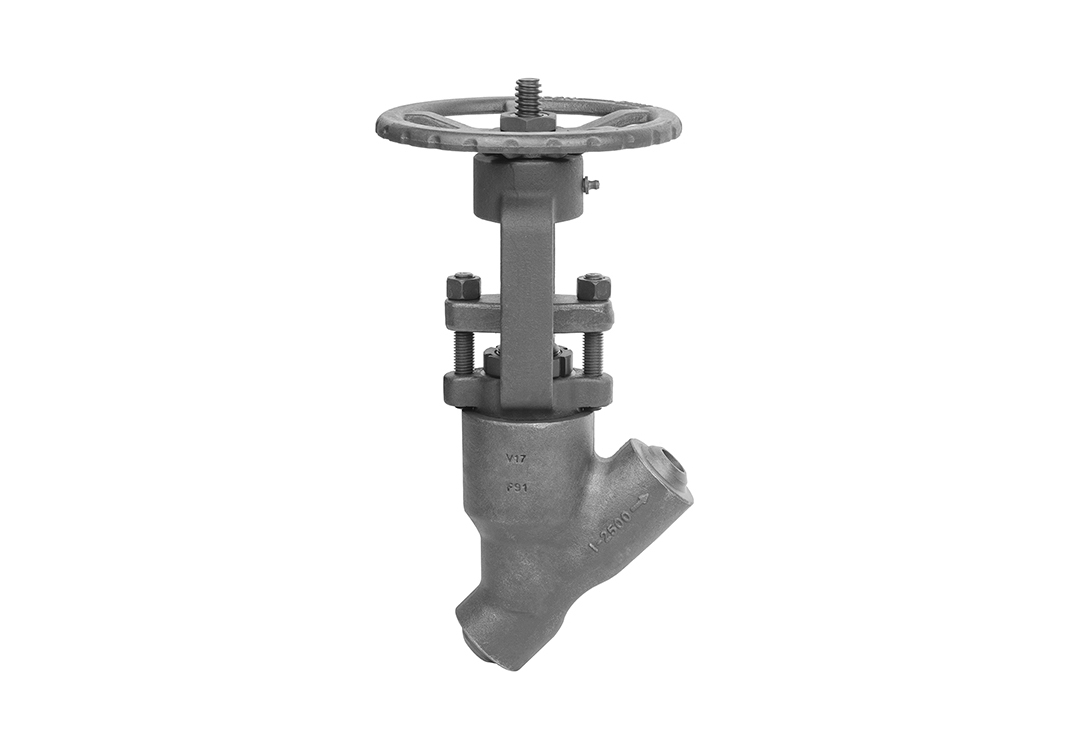

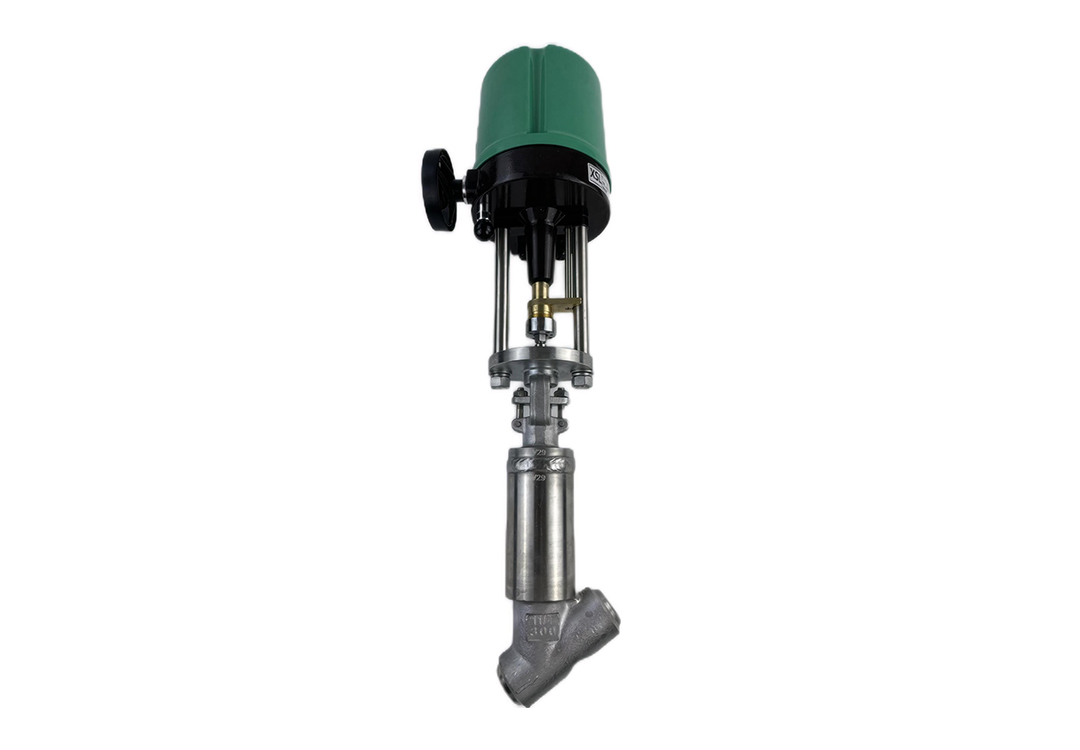

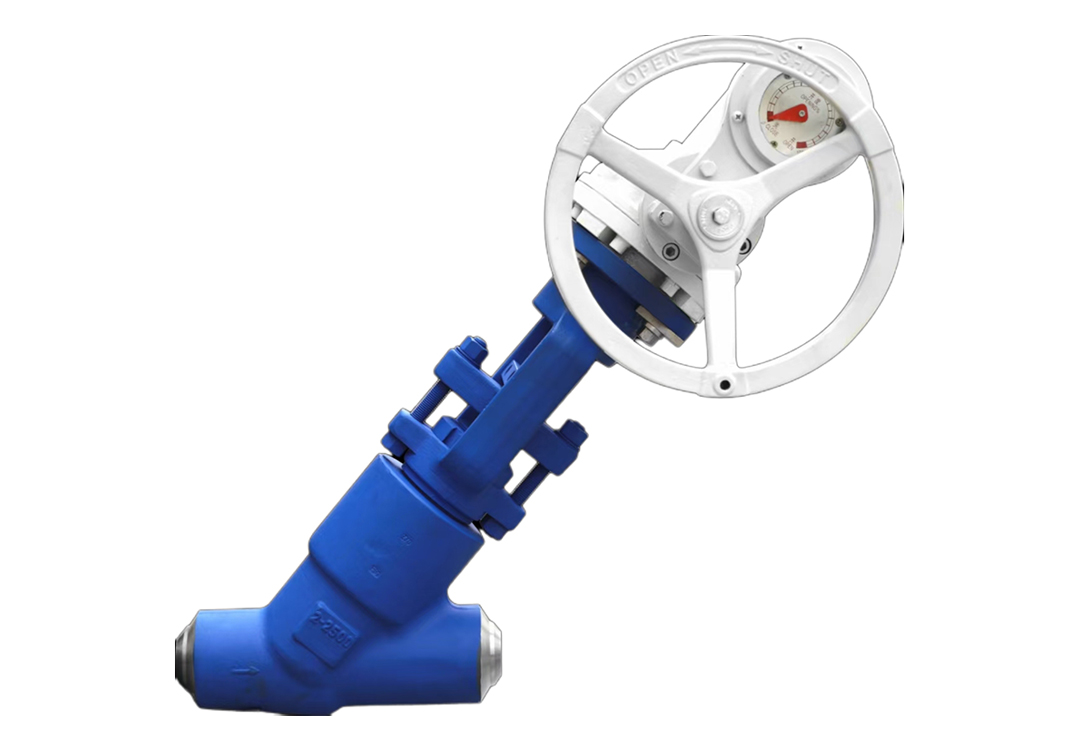

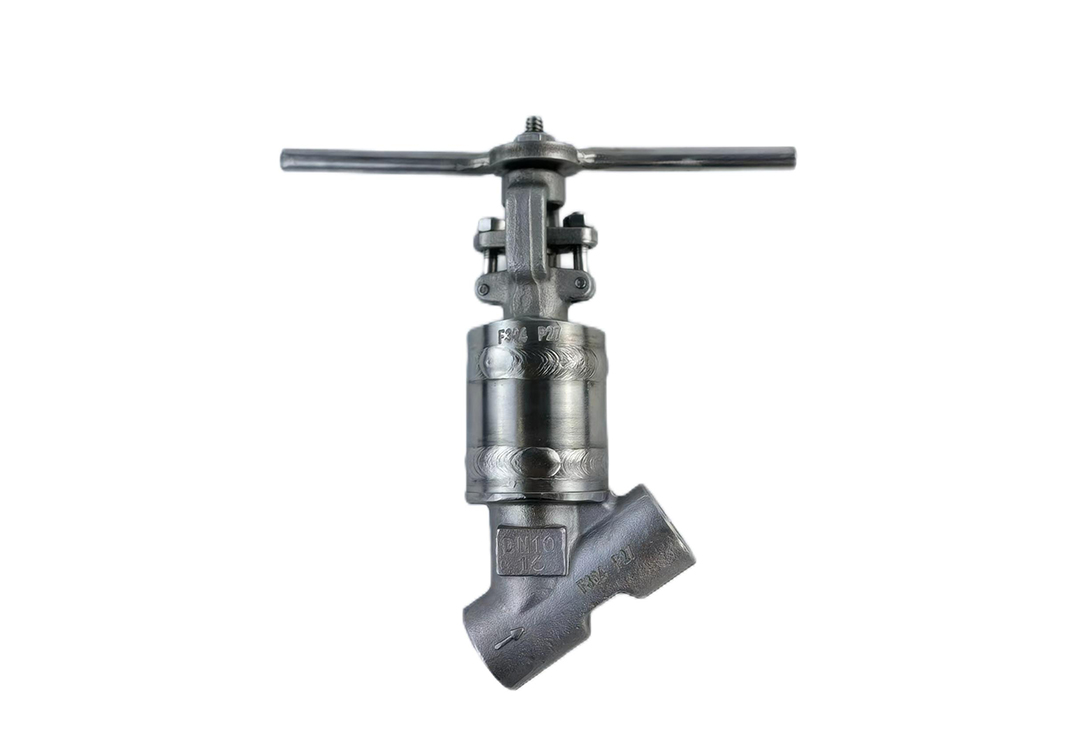

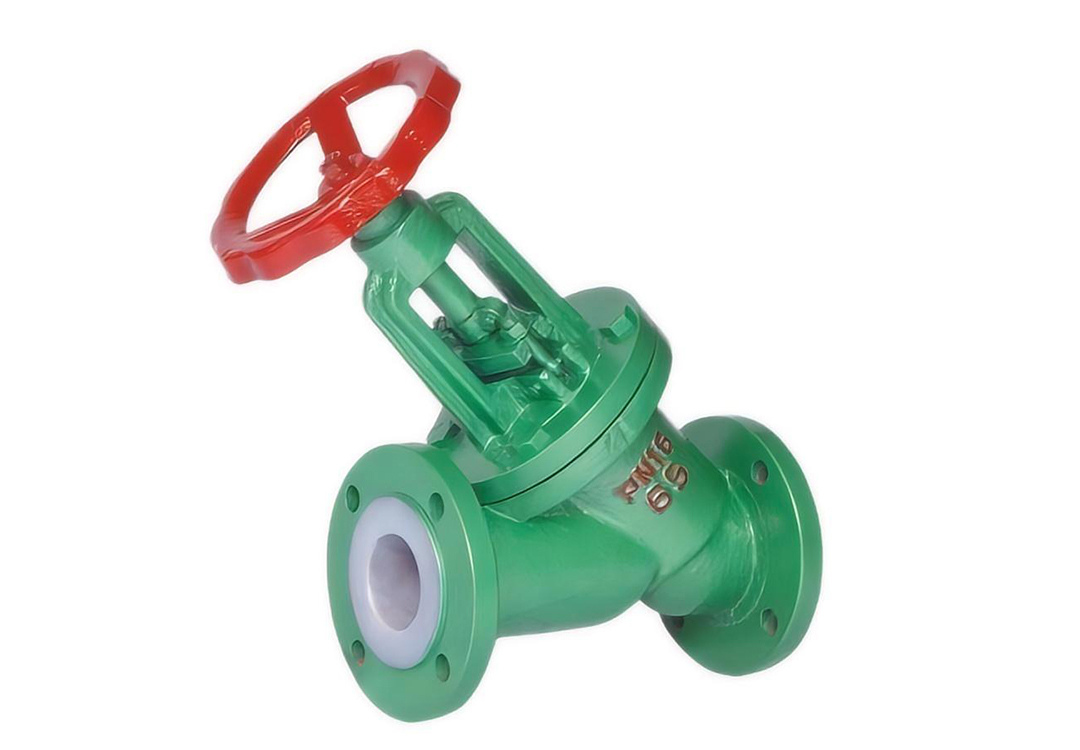

Y-Type Globe Valves
