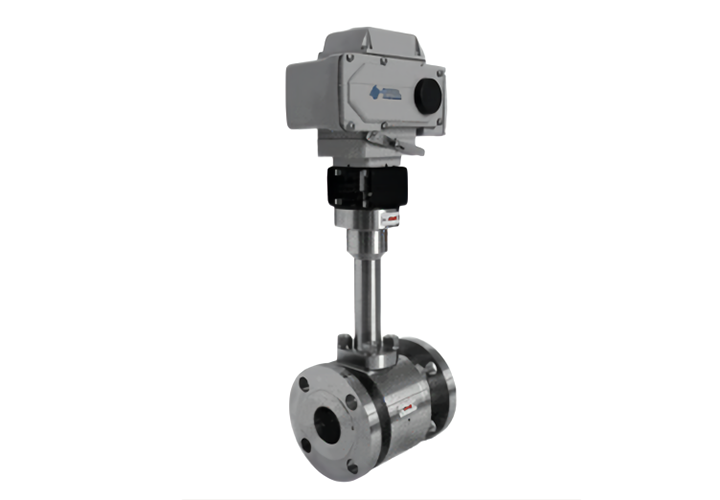

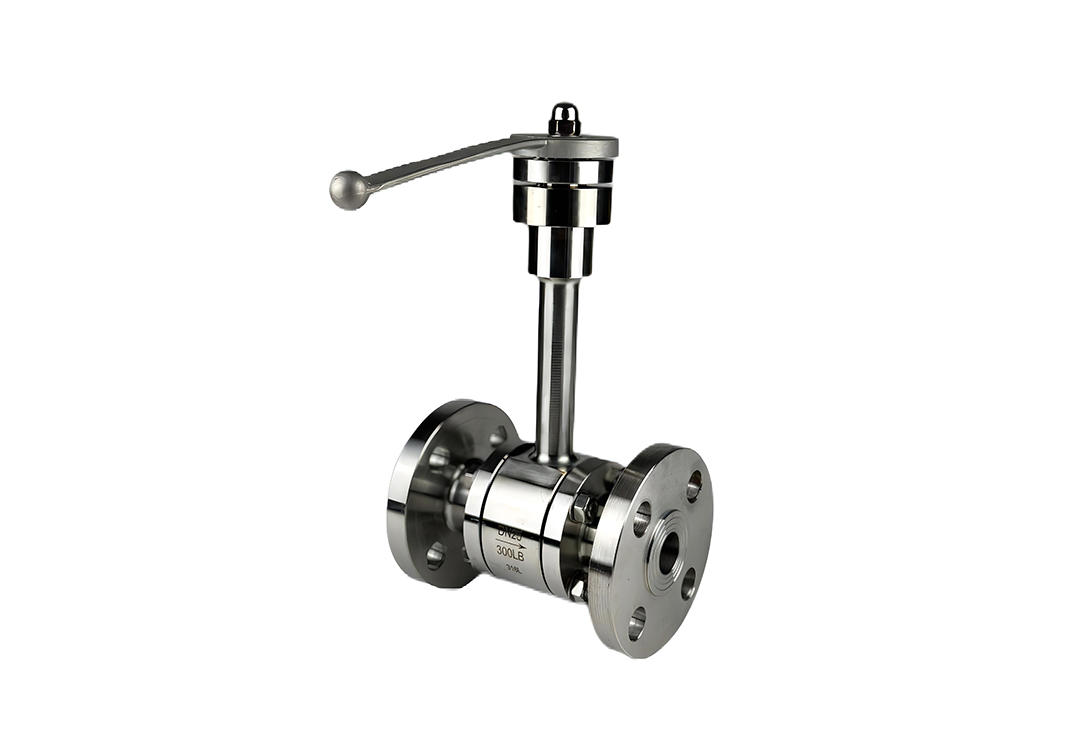

Low Temperature Ball Valve

The low temperature ball valve is resistant to frost cracking, high temperature deformation, corrosion and dirt, ensuring the safe operation of pipelines. It is one of the important equipment for transporting low-temperature liquids, mainly used for the output of liquid low temperature media such as ethylene, liquid oxygen, liquid hydrogen, liquefied natural gas, liquefied petroleum products, etc., not only flammable and explosive, but also gasification when heating, gasification, the volume expansion of hundreds of times.

+86 17357466831

lip@lipvalve.com

Design Advantages

The structure adopts a pressure reducing hole on the valve core.

The gasket is made of ceramic filling material with stable sealing properties.

The ball valve channel is flat and smooth, and it is not easy to deposit media, allowing for pipeline ball connection.

Long valve stem form, maintaining normal temperature and sealing of the gland.

A drip plate structure can be installed to avoid or reduce the transfer of low-temperature medium temperature to the valve stem and the filling material on its upper end.

Anti icing and anti freezing measures to prevent valves from freezing under low temperature conditions.

Technical Parameters

Size	DN15-DN1500, 1/2''-60''
Pressure	PN10-PN420, Class150-Class2500
Temperature	-200°C to 650°C
Connection type	Flange, Thread, Socket weld, Butt weld
Operation mode	Manual, Pneumatic, Electric, Hydraulic, Gear operation

Materials

Valve Body	Forged	A105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, etc
	Cast	WCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc.
Valve Stem		F6a, 17-4PH, XM-19, F304, F316, F347, F904, F51, F53, F310, Monel400, Monel500, N08020, Inconel625, Incoloy825, etc.
Valve Disc		A105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, F6a, 17-4PH, XM-19, F304, F316, F347, F904, F51, F53, F310, Monel400, Monel500，Incoloy825，WCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc.
Seat Sealing		SS, BR, CU, AS, CS, AL, PTFE, NBR, FKM, AI203, etc.

Design Standards

Valve Body	API 6D, API 608, ASME B16.34, DIN 3357, BS 5351, GOST 9833, JIS B2071, GB/T 12237, etc.
Flange	ANSI B16.5, EN 1092-1, JIS B2220, GB/T 9113, ASME B16.47, GOST 12821, DIN 2543-2545, etc.
Connection	ANSI B16.10, ASME B16.25, JIS B2212, GOST 33259, DIN 3202, etc.
Test Standards	API 598, ISO 5208, BS EN 12266, ASME B16.104, GOST 9544-2015, JIS B2003, DIN 3230, etc.

The precise selection of design standards for low temperature ball valve ensures that the product meets international quality and safety benchmarks. Compliance with these standards guarantees valve performance, reliability and compatibility in different installations and applications.

Recommended

Enquire for more information

Delivering One-Stop

Ball Valves Solutions.

A reputable provider offers more than just a product sale. Lipin provide strong post-purchase support, addressing issues or concerns.

Select Application Scenarios

Before choosing different types of Ball Valves, please determine their main uses. Whether it is water treatment, petroleum or other industries, different application scenarios will directly affect valve selection.
Choose The Right Valve Type

Ball valves come in many different types. Depending on factors such as flow control and pressure, choose the one that will perform best in your system.
Select Materials

Diversified selection of materials. Choose different materials according to needs. We provide materials ranging from conventional carbon steel to stainless steel to alloy materials, covering basically all valve materials.
Verify Feasibility (Technical Support)

Discuss with engineers and ask experts to verify to confirm that the valve meets technical requirements. Provide professional advice and installation and maintenance guidance
Quality Control

We have a strict quality inspection department. Every link needs to be inspected before entering the next link. We will never miss any link until the product is delivered safely.
After-Sales Service

24-hour online customer service, 2-year warranty or 18 months after installation, whichever comes first.

Low Temperature Ball Valve

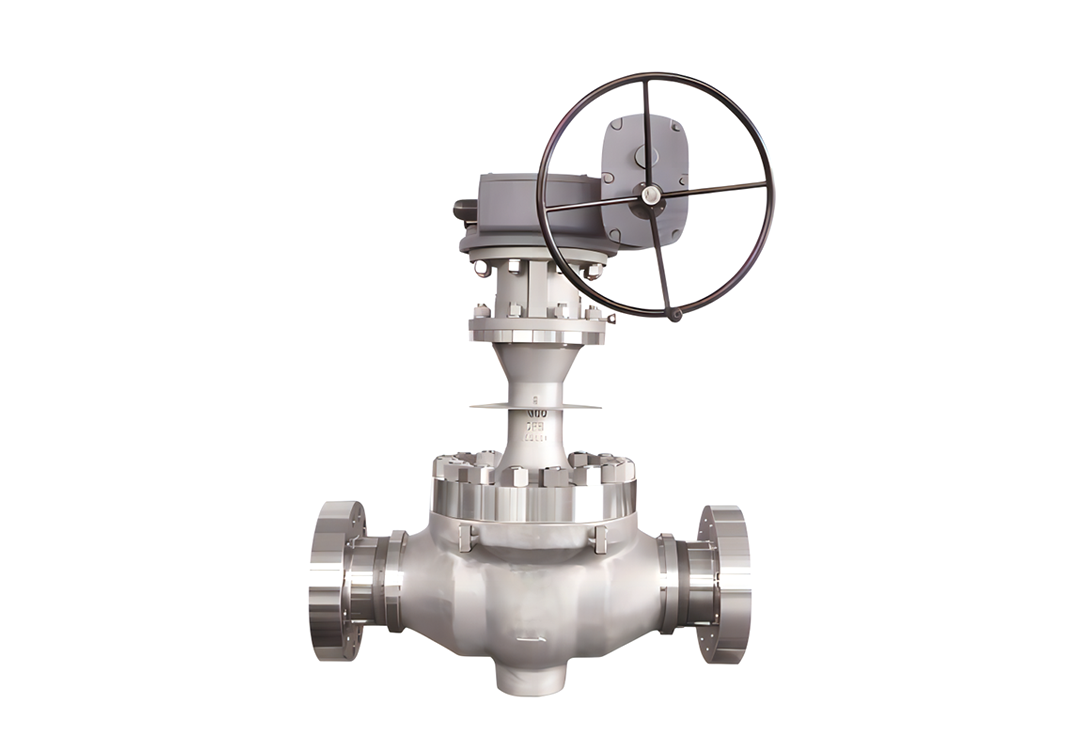

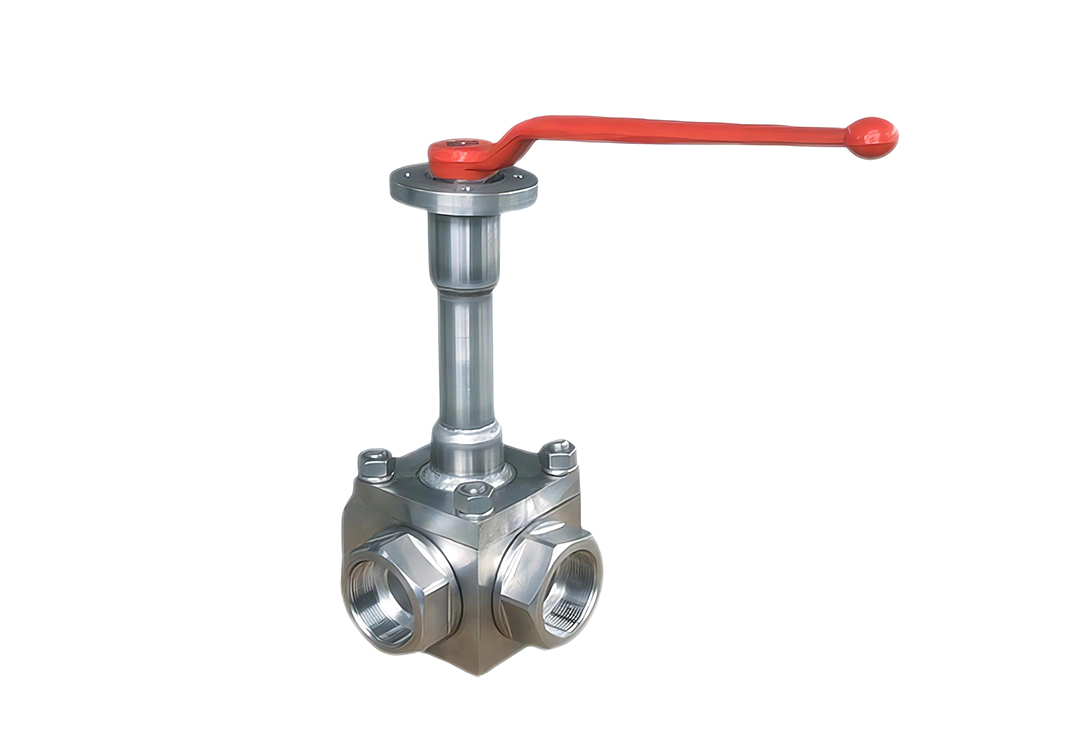

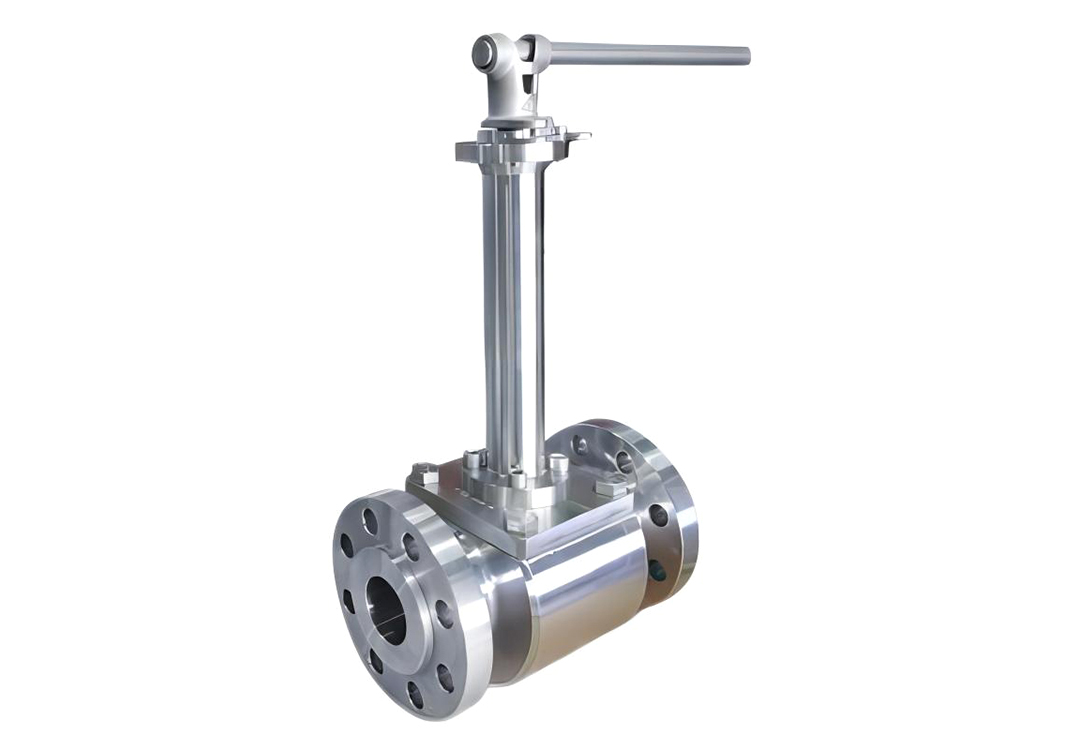

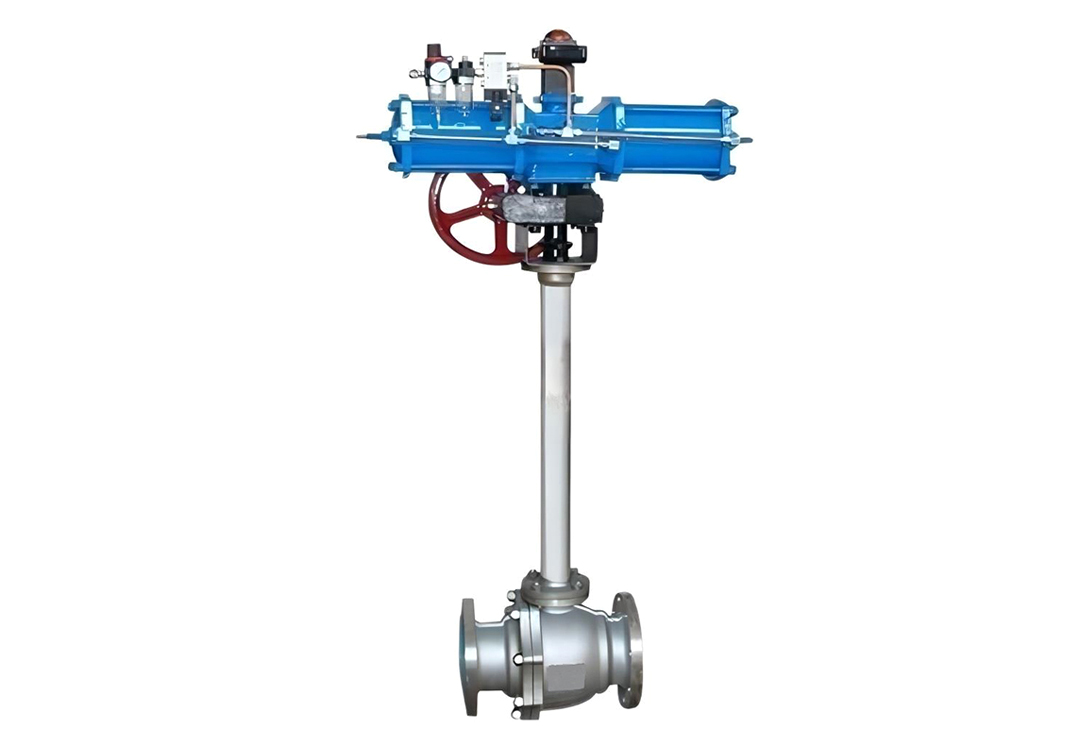

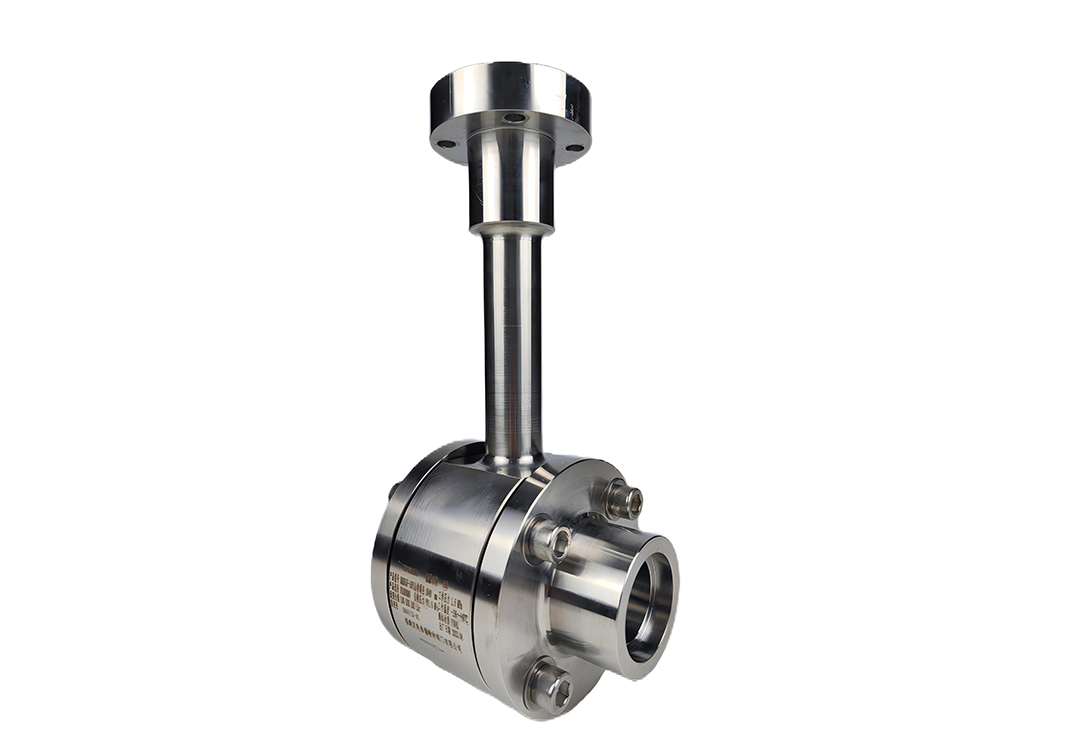

Lipin's Comprehensive Range of Low Temperature Ball Valve
