Square Knife Gate Valve

Square knife gate valves utilize a square-shaped gate to provide efficient flow control and reliable shutoff in applications involving viscous fluids, slurries, and solids. The square gate design offers a larger sealing area compared to traditional gate valves, resulting in enhanced sealing performance and reduced wear. Square knife gate valves are commonly employed in industries such as wastewater treatment, mining, and food processing, where handling thick or abrasive media requires robust and reliable valve solutions.

+86 17357466831

lip@lipvalve.com

Design Advantages

Unique Design: The square knife gate valve stands out with its distinct square-shaped gate, offering precise control over fluid flow in industrial applications.

Effective Sealing: Equipped with a knife gate mechanism, this valve ensures tight sealing to prevent leakage and maintain system integrity during operation.

Durability: Built to withstand the rigors of industrial environments, the valve features sturdy construction and high-quality materials for long-lasting performance.

Versatile Applications: Suitable for use in various industries, including mining, wastewater treatment, pulp and paper processing, and chemical processing, where reliable flow control is essential.

Compact Size: The square design allows for a more compact valve size, making it ideal for installations with space constraints.

Low Maintenance: Designed for minimal maintenance requirements, the valve reduces downtime and operational costs while maximizing efficiency.

Technical Parameters

Size	DN15-DN2000, 1/2''-80''
Pressure	PN10-PN420, Class150-Class2500
Temperature	-200℃ to 650℃
Connection type	Flange, Thread, Socket weld, Butt weld
Operation mode	Manual, Pneumatic, Electric, Hydraulic, Gear transmission

Materials

Valve Body	Forged	A105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, etc
	Cast	WCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc
Valve Stem		F6a, 17-4PH, XM-19, F304, F316, F347, F904, F51, F53, F310, Monel400, Monel500, N08020, Inconel625, Incoloy825，etc
Valve Disc		A105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, F6a, 17-4PH, XM-19, F304, F316, F347, F904, F51, F53, F310, Monel400, Monel500，Incoloy825，WCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc
Seat Sealing		SS,BR,CU,AS,CS,AL,PTFE,NBR,FKM,AI203,etc

Design Standards

Valve Body	API 600, API 602, ASME B16.34, DIN 3352, BS 5163, GOST 5762, JIS B2073, GB/T 12233, etc.
Flange	ANSI B16.34, EN 1982, JIS B2210, GB/T 17241, ASME B16.42, GOST 12815, DIN 3202-1, etc.
Connection	ANSI B16.10, ASME B16.25, JIS B2212, GOST 33259, DIN 3202, etc.
Test Standards	API 598, ISO 5208, BS EN 12266, ASME B16.104, GOST 9544-2015, JIS B2003, DIN 3230, etc.

The careful selection of design standards for Square Knife Gate Valve is crucial to ensure adherence to international quality and safety benchmarks. By complying with these standards, Square Knife Gate Valve offer outstanding performance, longevity, and suitability across various installations and applications.

Recommended

Enquire for more information

Delivering One-Stop

Gate Valves Solutions.

A reputable provider offers more than just a product sale. Lipin provide strong post-purchase support, addressing issues or concerns.

Select Application Scenarios

Before choosing different types of Gate Valves, please determine their main uses. Whether it is water treatment, petroleum or other industries, different application scenarios will directly affect valve selection.
Choose The Right Valve Type

Gate valves come in many different types. Depending on factors such as flow control and pressure, choose the one that will perform best in your system.
Select Materials

Diversified selection of materials. Choose different materials according to needs. We provide materials ranging from conventional carbon steel to stainless steel to alloy materials, covering basically all valve materials.
Verify Feasibility (Technical Support)

Discuss with engineers and ask experts to verify to confirm that the valve meets technical requirements. Provide professional advice and installation and maintenance guidance
Quality Control

We have a strict quality inspection department. Every link needs to be inspected before entering the next link. We will never miss any link until the product is delivered safely.
After-Sales Service

24-hour online customer service, 2-year warranty or 18 months after installation, whichever comes first.

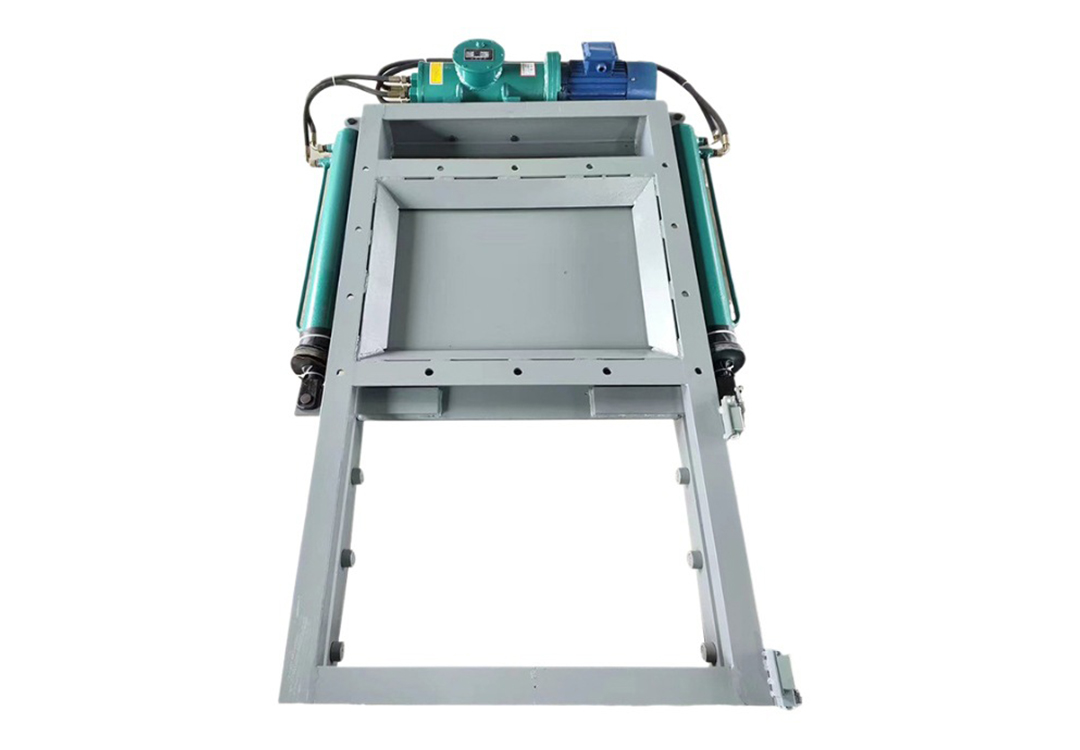

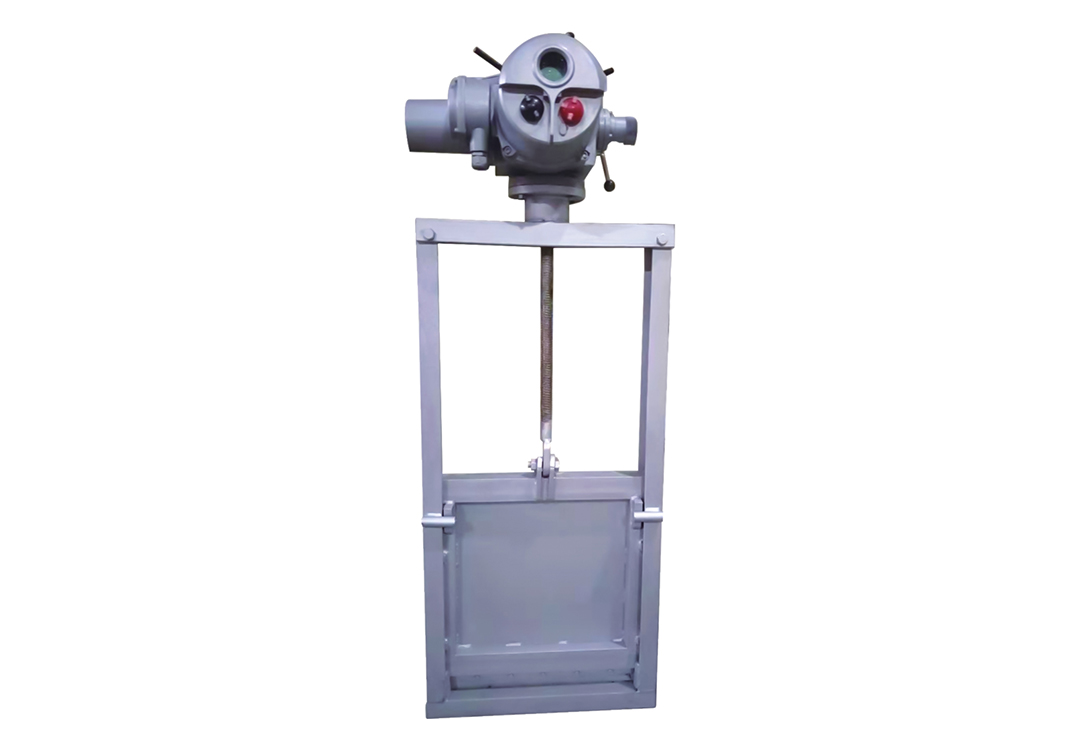

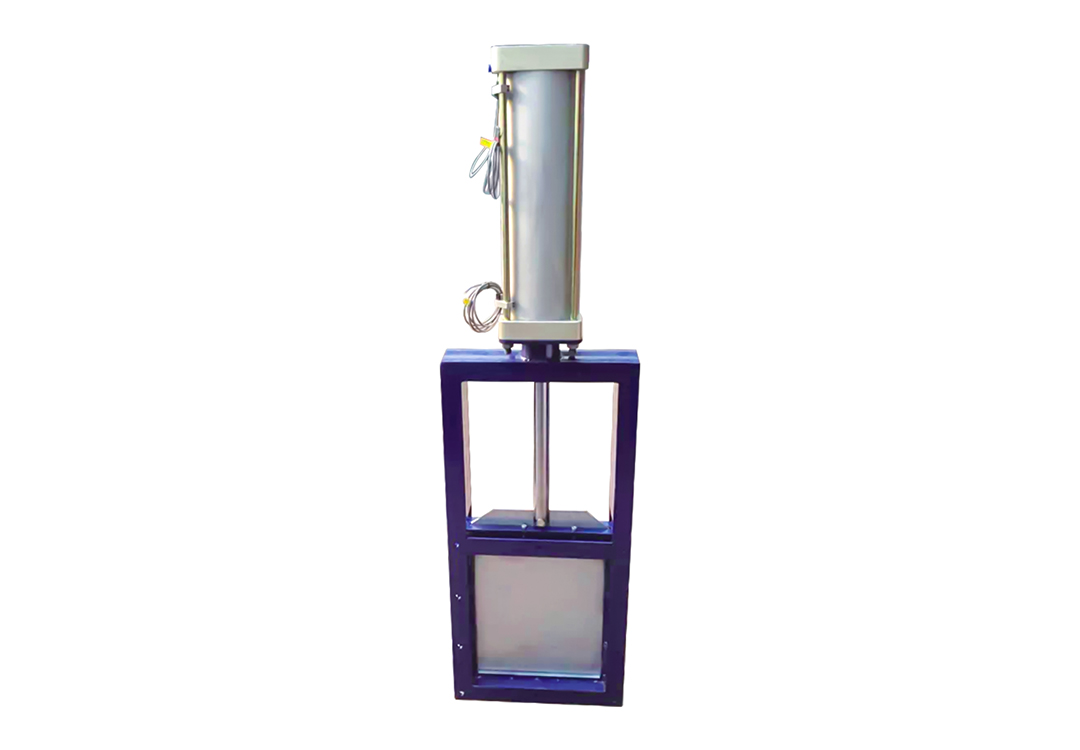

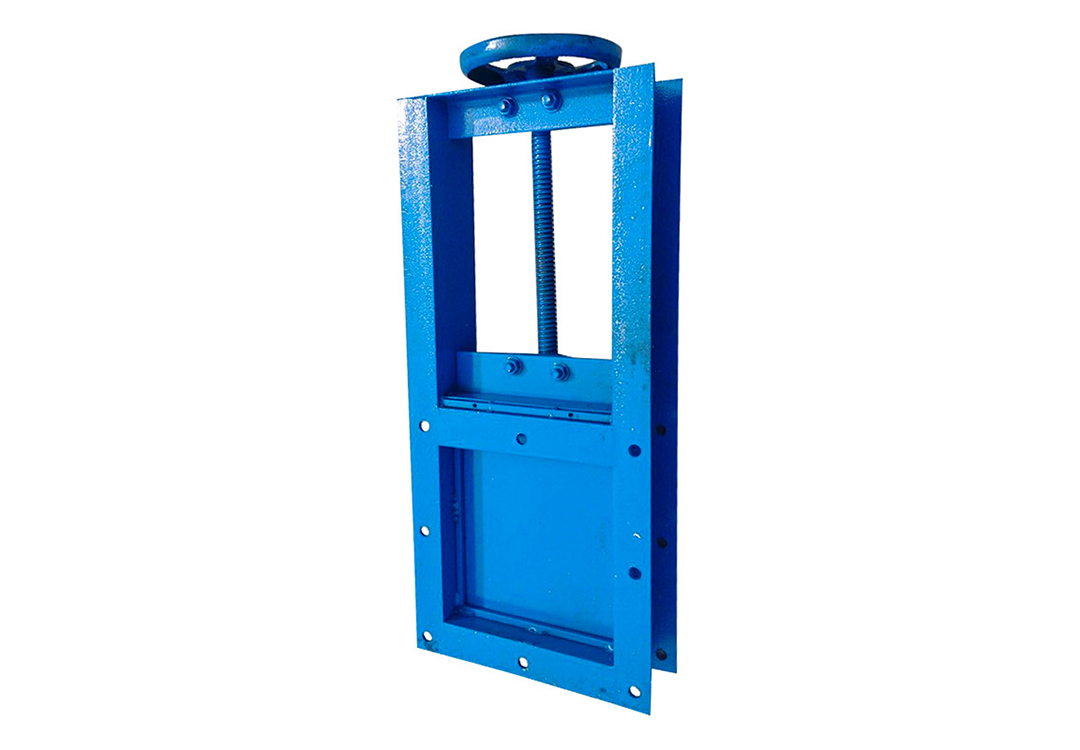

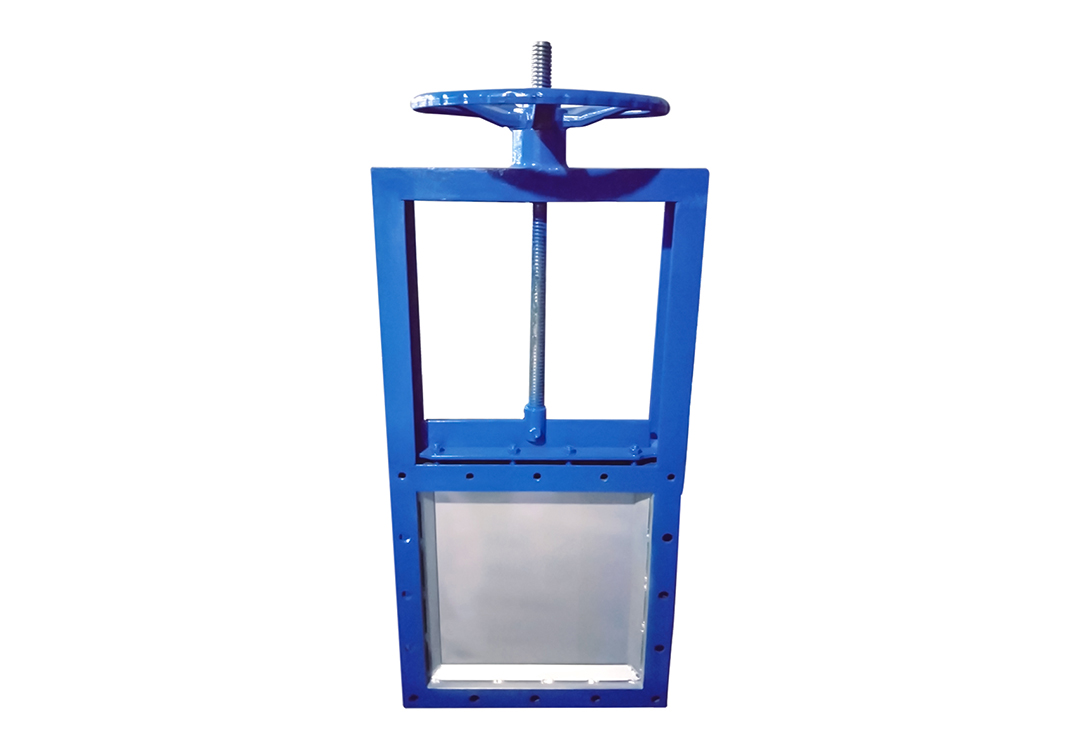

Square Knife Gate Valve
