Bellows Globe Valve

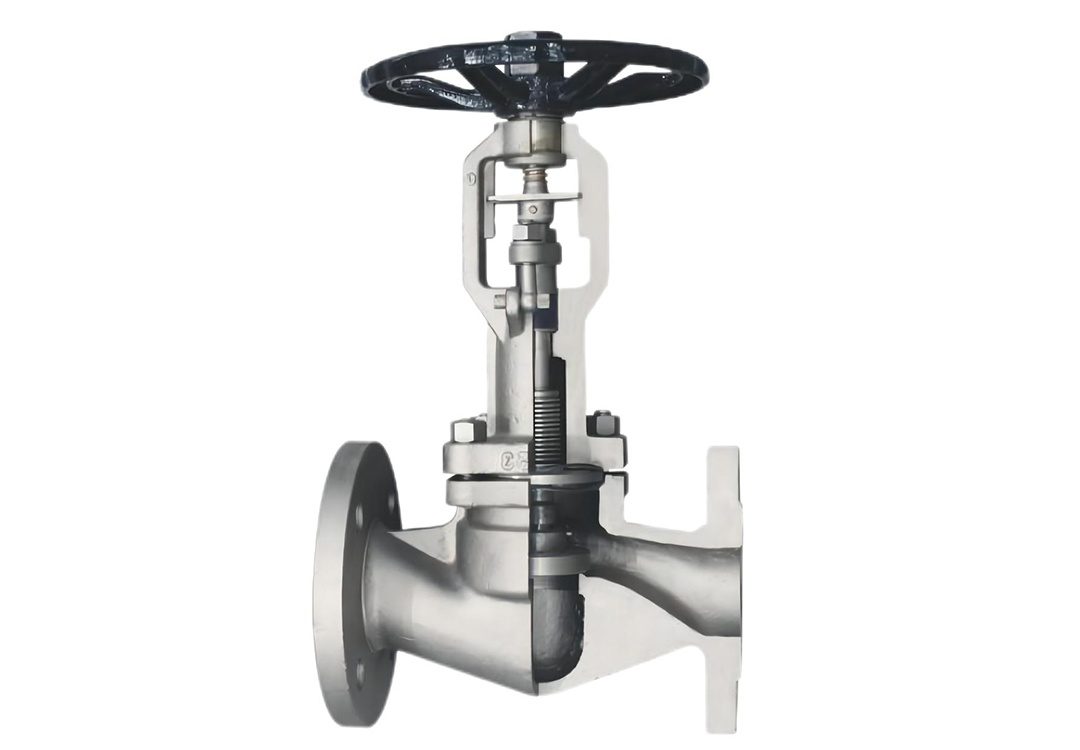

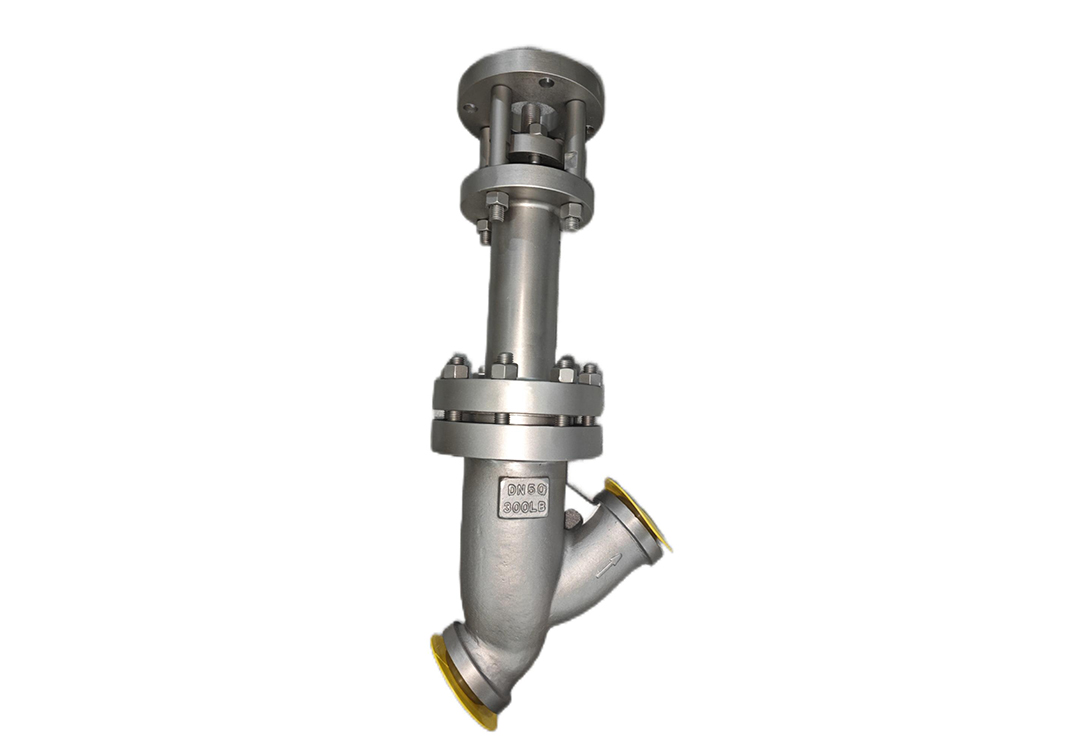

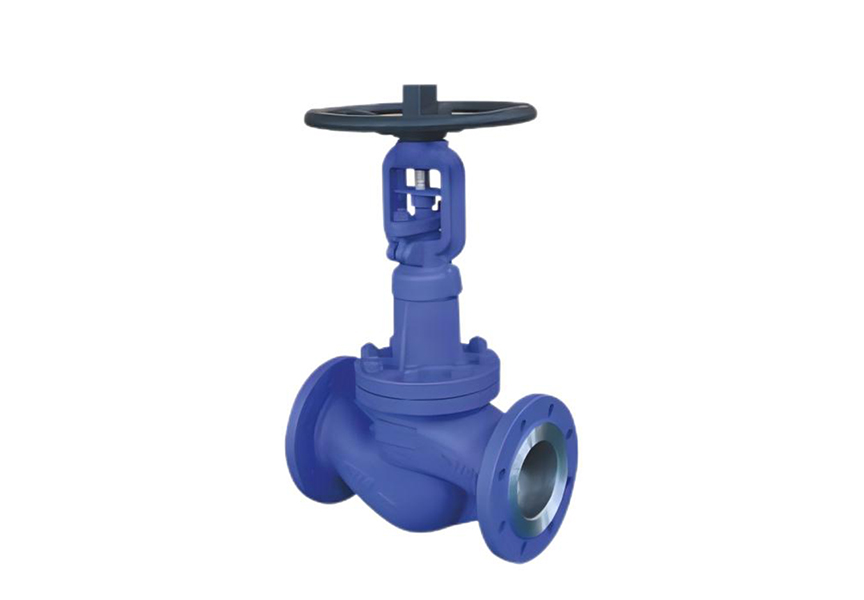

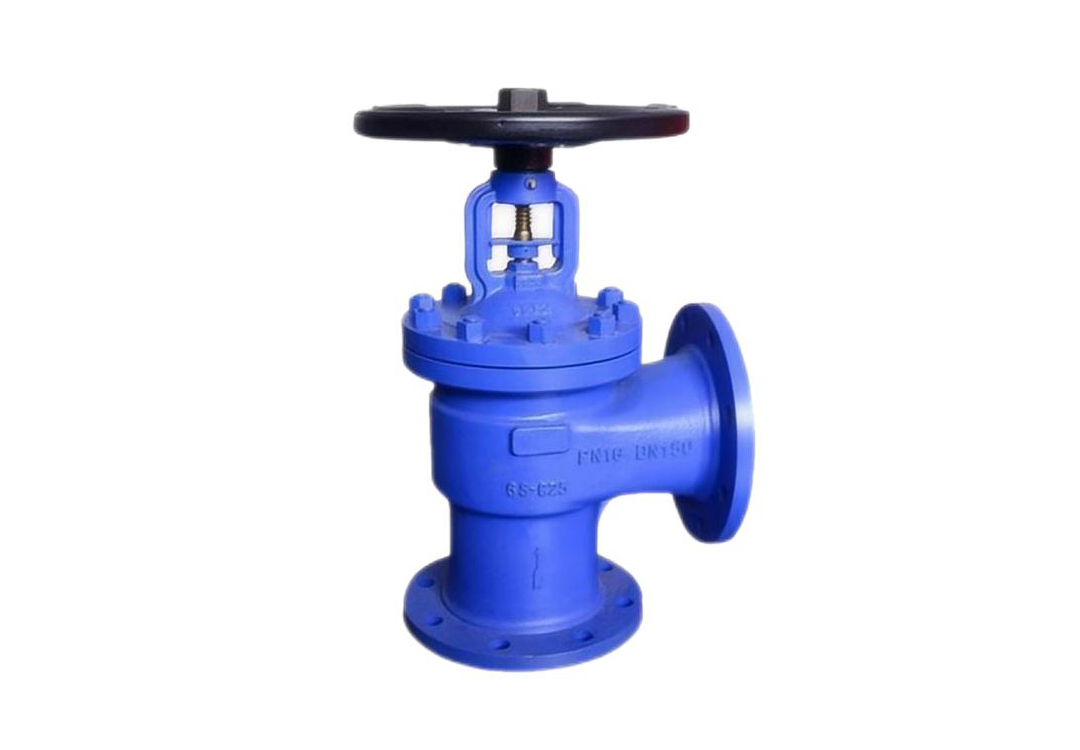

The bellows globe valve adopts a bellows structure internally, and the lower end of the stainless steel bellows is welded to the valve stem to prevent the process fluid from corroding the valve stem. The other end is placed between the valve body and the valve bonnet to form a static seal. The double sealing design will prevent leakage if the bellows fails and the valve stem packing fails. The bellows is welded to the valve stem to maintain stable operating performance and avoid valve stem vibration due to valve plug vibration. Most suitable for pipelines with steam, flammable, explosive, thermal oil, high purity, toxic and other media.

+86 17357466831

lip@lipvalve.com

Design Advantages

Bellows with packing and double sealing to prevent leakage

The bellows design does not require disassembly and replacement of packing, saving costs.

Circular valve disc design reduces friction between the base and the valve disc and increases service life

High sealing performance, reducing energy loss

Corrosion resistant and able to be used in a range of extreme environments

Multiple operating modes to choose from

Diversified selection of materials to increase strength

Technical Parameters

Size	DN15-DN600, 1/2''-24''
Pressure	PN10-PN420, Class150-Class2500
Temperature	-200°C to 650°C
Connection type	Flange, Thread, Socket weld, Butt weld

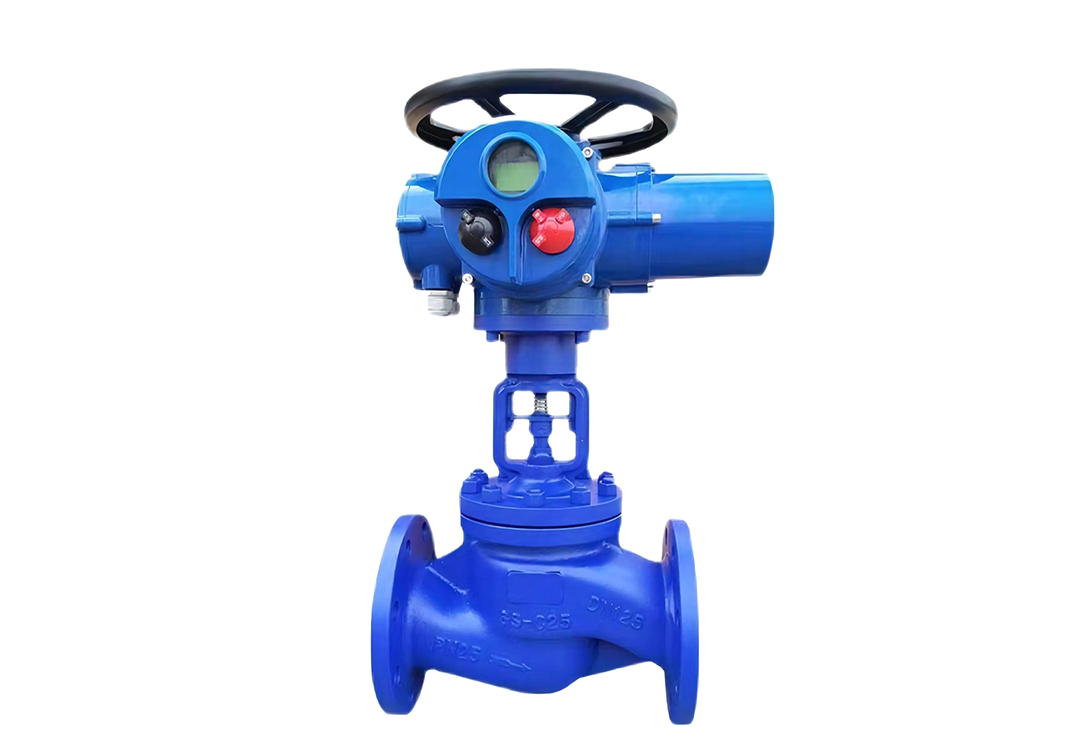

Operation mode	Manual, Pneumatic, Electric, Hydraulic, Gear operation

Materials

Valve Body	Forged	A105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, etc
	Cast	WCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc
Valve Stem		F6a, 17-4PH, XM-19, F304, F316, F347, F904, F51, F53, F310, Monel400, Monel500, N08020, Inconel625, Incoloy825,etc
Valve Disc		A105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, F6a, 17-4PH, XM-19, F304, F316, F347, F904, F51, F53, F310, Monel400, Monel500，Incoloy825，WCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc
Seat Sealing		SS，BR，CU，AS，CS，AL，PTFE，NBR，FKM，AI203，etc

Design Standards

Valve Body	API 602, API 600, ASME B16.34, DIN 3356, BS 1873, GOST 5762, JIS F7305,GB/T 12234，etc.
Flange	ANSI B16.5, EN 1092-1, JIS B2220, GB/T 9113, ASME B16.47, GOST 12820, DIN 2543-2545, etc.
Connection	ANSI B16.10, ASME B16.25, JIS B2212, GOST 33259, DIN 3202, etc.
Test Standards	API 598, ISO 5208, BS EN 12266, ASME B16.104, GOST 9544-2015, JIS B2003, DIN 3230, etc.

The precise selection of design standards for bellows sealed globe valves ensures that the product meets international quality and safety benchmarks. Compliance with these standards guarantees valve performance, reliability and compatibility in different installations and applications
