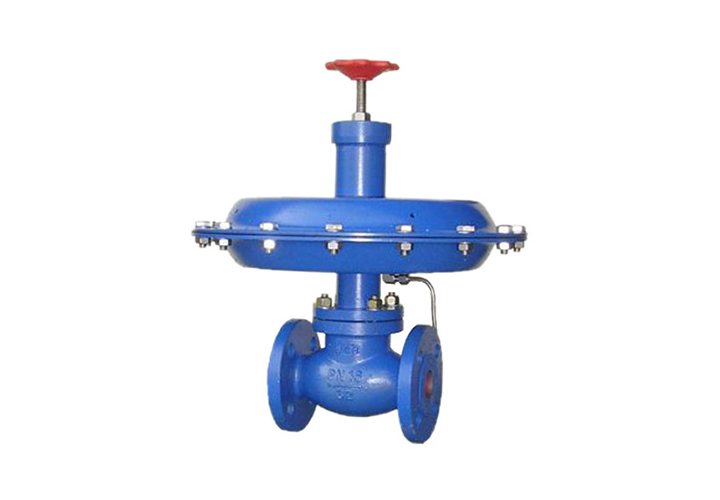

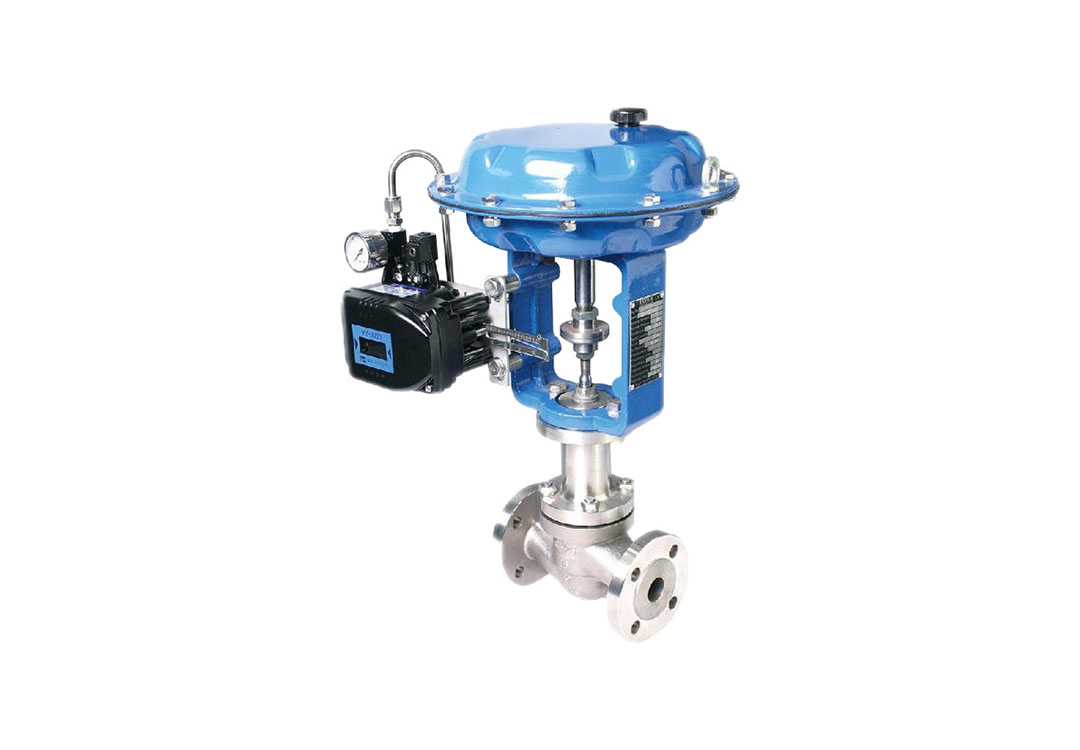

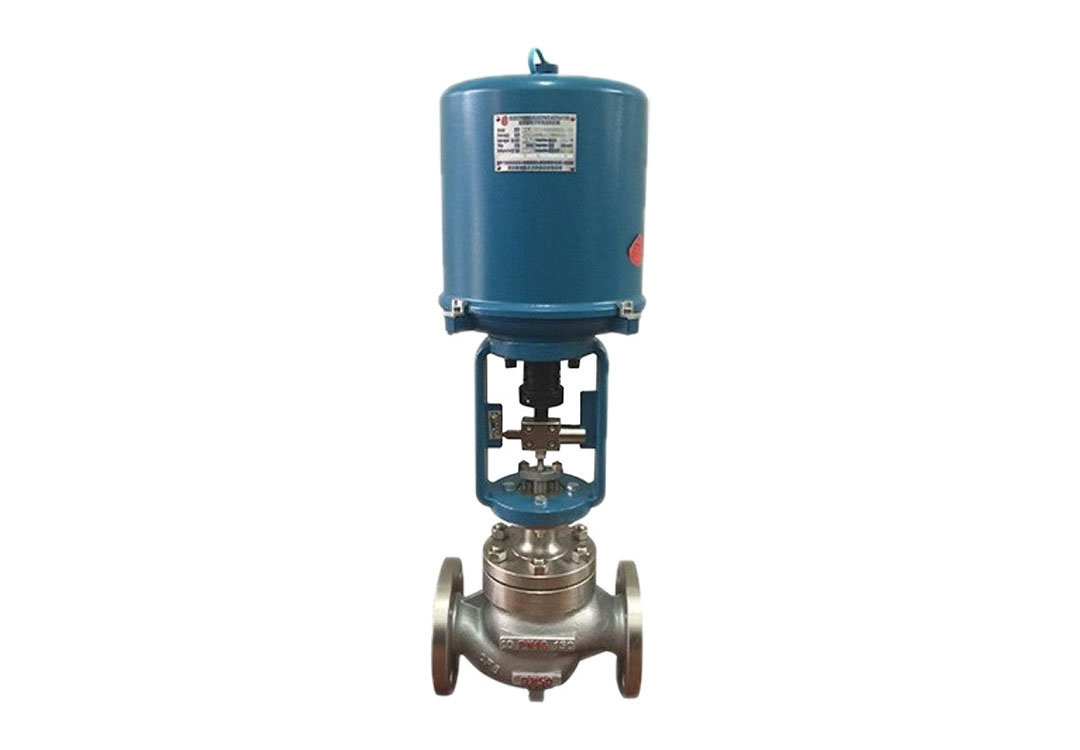

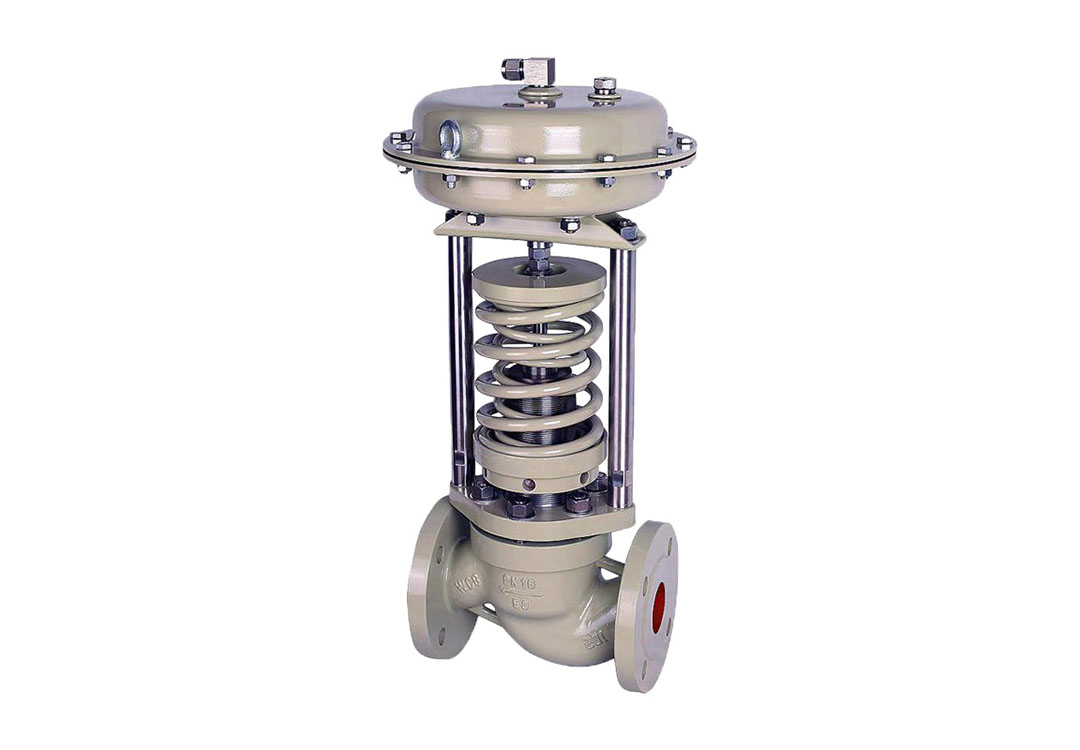

Control Valves

Distinctively different from their conventional peers, control valves are renowned for their unique regulating mechanism, enabling accurate flow control and optimization. This specialized design ensures the valve can precisely modulate flow rates, adapting swiftly to varying process conditions. Manufactured with materials ranging from sturdy carbon steel to advanced corrosion-resistant stainless steel, these valves are pivotal in a multitude of intricate industrial scenarios. Their modern design, fused with high-caliber engineering, ensures they fit snugly even in compact installations. Further bolstered by a precision-crafted stem and cutting-edge actuator system, these valves promise consistent and reliable regulation with reduced hysteresis. For professionals seeking impeccable flow management, durability, and performance, the control valve stands as the quintessential choice in fluid dynamics.

+86 17357466831

lip@lipvalve.com

Design Advantages

Precision Control: Accurate flow modulation for optimal process conditions.

Material Versatility: From sturdy carbon steel to high-grade corrosion-resistant materials.

Streamlined Design: Apt for tight spaces without compromising functionality.

Responsive Actuation: Swift response to changing operational needs.

Durability: Engineered for prolonged operational life even in demanding scenarios.

Refined Stem: Ensures smooth valve operation with precise control.

Advanced Actuators: Crafted for reduced hysteresis and consistent performance.

Technical Parameters

Size	DN15-DN600, 1/2''-24''
Pressure	PN10-PN450, Class150-Class2600
Temperature	-200℃ to 650℃
Connection type	Flange, Thread, Socket weld, Butt weld
Operation mode	Manual, Pneumatic, Electric, Hydraulic, Gear transmission

Materials

Valve Body	Forged	A105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, etc
	Cast	WCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc
Valve Stem		F6a, 17-4PH, XM-19, F304, F316, F347, F904, F51, F53, F310, Monel400, Monel500, N08020, Inconel625, Incoloy825，etc
Valve Disc		A105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, F6a, 17-4PH, XM-19, F304, F316, F347, F904, F51, F53, F310, Monel400, Monel500，Incoloy825，WCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc
Seat Sealing		PTFE, EPDM, NBR, VITON, etc

Design Standards

Valve Body	API 602, ASME B16.34, DIN 3356, BS 1873, GOST 5762, JIS F7305, etc.
Flange	ANSI B16.5, EN 1092-1, JIS B2220, GB/T 9113, ASME B16.47, GOST 12820, DIN 2543-2545, etc.
Connection	ANSI B16.10, ASME B16.25, JIS B2212, GOST 33259, DIN 3202, etc.
Test Standards	API 598, ISO 5208, BS EN 12266, ASME B16.104, GOST 9544-2015, JIS B2003, DIN 3230, etc.

The precise choice of design standards for the control valve ensures that the product meets international quality and safety benchmarks. Adhering to these standards guarantees the valve's performance, reliability, and compatibility across diverse installations and applications.

Recommended

Enquire for more information

Delivering One-Stop

Globe Valve Solutions.

A reputable provider offers more than just a product sale. Lipin provide strong post-purchase support, addressing issues or concerns.

Select Application Scenarios

Before choosing different types of globe valves, please determine their main uses. Whether it is water treatment, petroleum or other industries, different application scenarios will directly affect valve selection.
Choose The Right Valve Type

Globe valves come in many different types. Depending on factors such as flow control and pressure, choose the one that will perform best in your system.
Select Materials

Diversified selection of materials. Choose different materials according to needs. We provide materials ranging from conventional carbon steel to stainless steel to alloy materials, covering basically all valve materials.
Verify Feasibility (Technical Support)

Discuss with engineers and ask experts to verify to confirm that the valve meets technical requirements. Provide professional advice and installation and maintenance guidance
Quality Control

We have a strict quality inspection department. Every link needs to be inspected before entering the next link. We will never miss any link until the product is delivered safely.
After-Sales Service

24-hour online customer service, 2-year warranty or 18 months after installation, whichever comes first.

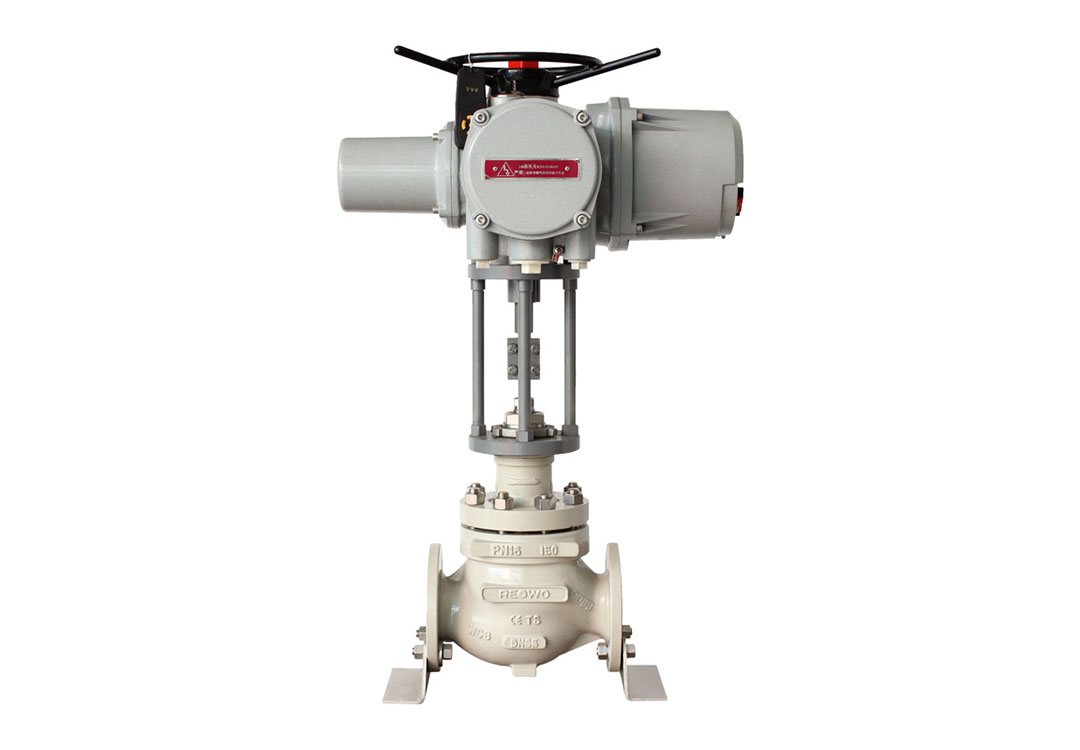

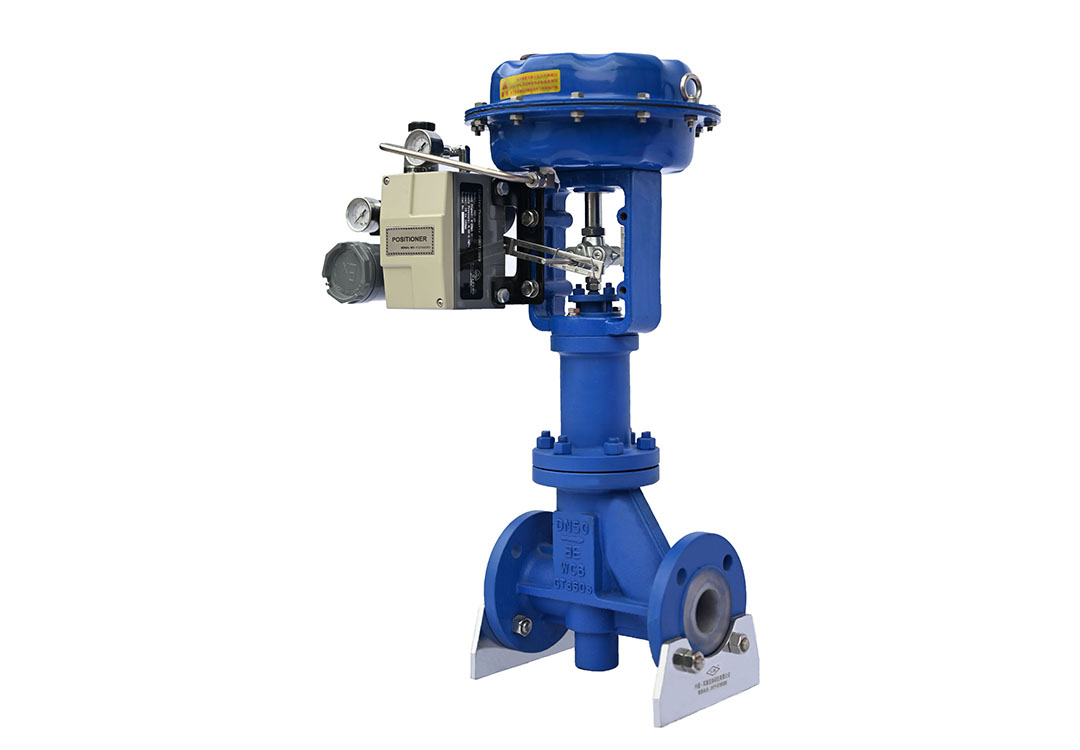

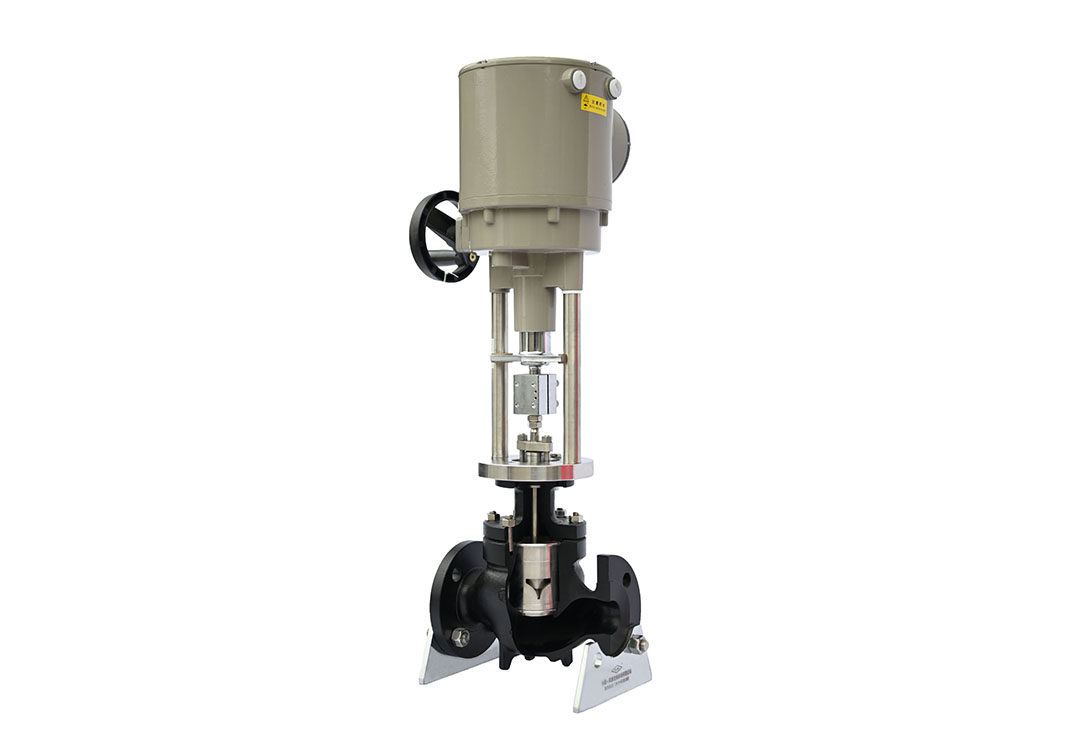

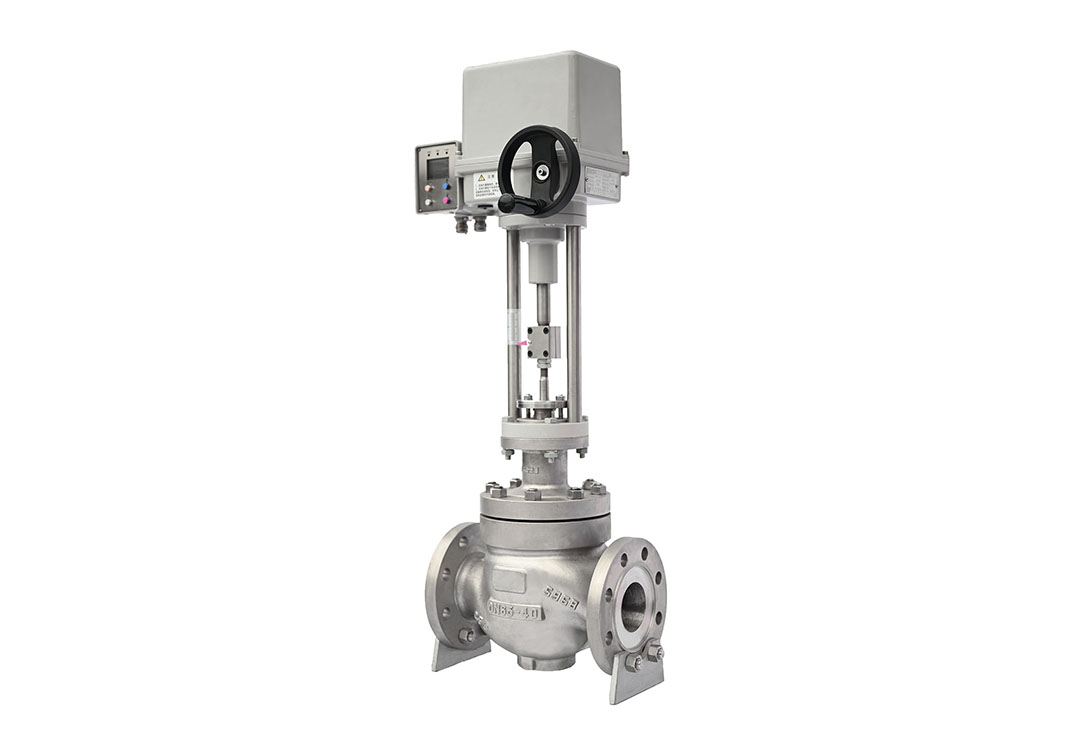

Control Valves
