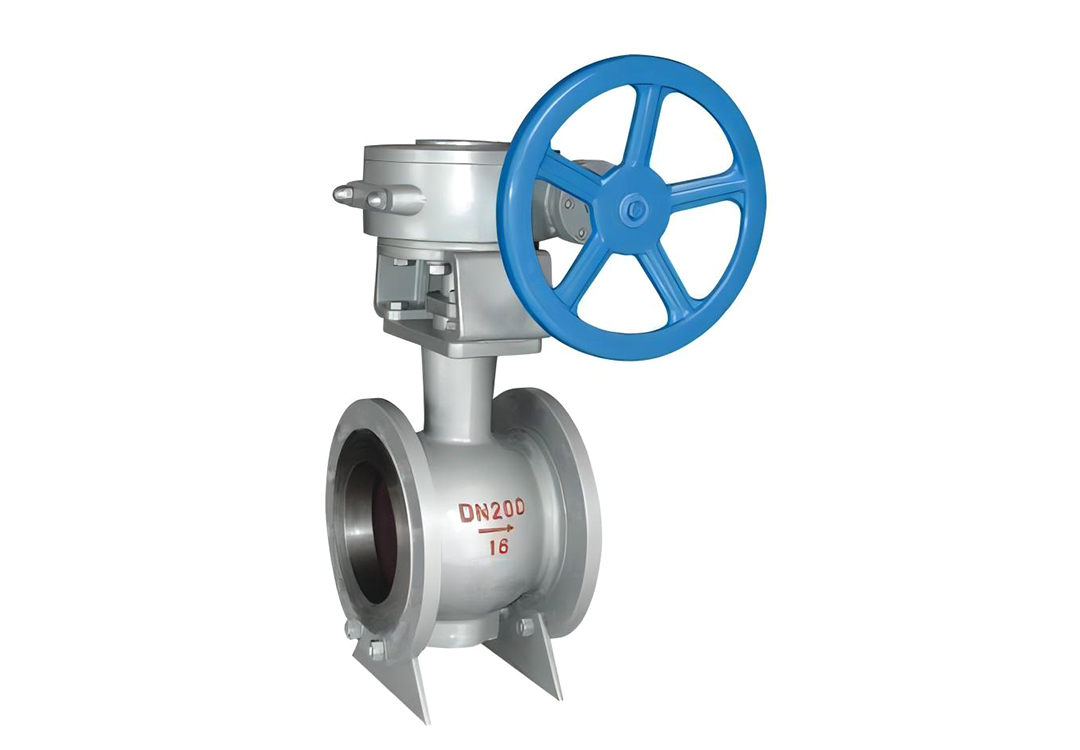

V type ball valve

Designed for precise flow control, the V-type ball valve has dual blocking and discharge functions, with upstream and downstream seats floating independently. V-shaped designs typically include seat lubrication ports that allow the injection of lubricants around the seat to enhance the seal. V-shaped ball valves have low fluid resistance and do not stick during operation (even without lubricants), making them ideal for use with aggressive media and low boiling point liquids.

+86 17357466831

lip@lipvalve.com

Design Advantages

Good sealing performance, small opening and closing torque.

The flow resistance is minimal and close to zero.

When the valve is opened and closed quickly, there is no impact during operation.

V-shaped ball valve equipped with fireproof, anti-static device.

The blowout preventer design prevents stem ejection from the body due to improper operation.

The stem can be lengthened as required for installation or operation.

Technical Parameters

Size	DN15-DN1500, 1/2''-60''
Pressure	PN10-PN420, Class150-Class2500
Temperature	-200°C to 650°C
Connection type	Flange, Thread, Socket weld, Butt weld
Operation mode	Manual, Pneumatic, Electric, Hydraulic, Gear operation

Materials

Valve Body	Forged	A105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, etc
	Cast	WCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc
Valve Stem		F6a, 17-4PH, XM-19, F304, F316, F347, F904, F51, F53, F310, Monel400, Monel500, N08020, Inconel625, Incoloy825, etc.
Valve Disc		A105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, F6a, 17-4PH, XM-19, F304, F316, F347, F904, F51, F53, F310, Monel400, Monel500，Incoloy825，WCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc.
Seat Sealing		SS, BR, CU, AS, CS, AL, PTFE, NBR, FKM, AI203, etc.

Design Standards

Valve Body	API 6D, API 608, ASME B16.34, DIN 3357, BS 5351, GOST 9833, JIS B2071, GB/T 12237, etc
Flange	ANSI B16.5, EN 1092-1, JIS B2220, GB/T 9113, ASME B16.47, GOST 12821, DIN 2543-2545, etc
Connection	ANSI B16.10, ASME B16.25, JIS B2212, GOST 33259, DIN 3202, etc
Test Standards	API 598, ISO 5208, BS EN 12266, ASME B16.104, GOST 9544-2015, JIS B2003, DIN 3230, etc

The precise selection of design standards for V type ball valve ensures that the product meets international quality and safety benchmarks. Compliance with these standards guarantees valve performance, reliability and compatibility in different installations and applications.

Recommended

Enquire for more information

Delivering One-Stop

Ball Valves Solutions.

A reputable provider offers more than just a product sale. Lipin provide strong post-purchase support, addressing issues or concerns.

Select Application Scenarios

Before choosing different types of Ball Valves, please determine their main uses. Whether it is water treatment, petroleum or other industries, different application scenarios will directly affect valve selection.
Choose The Right Valve Type

Ball valves come in many different types. Depending on factors such as flow control and pressure, choose the one that will perform best in your system.
Select Materials

Diversified selection of materials. Choose different materials according to needs. We provide materials ranging from conventional carbon steel to stainless steel to alloy materials, covering basically all valve materials.
Verify Feasibility (Technical Support)

Discuss with engineers and ask experts to verify to confirm that the valve meets technical requirements. Provide professional advice and installation and maintenance guidance
Quality Control

We have a strict quality inspection department. Every link needs to be inspected before entering the next link. We will never miss any link until the product is delivered safely.
After-Sales Service

24-hour online customer service, 2-year warranty or 18 months after installation, whichever comes first.

V type ball valve

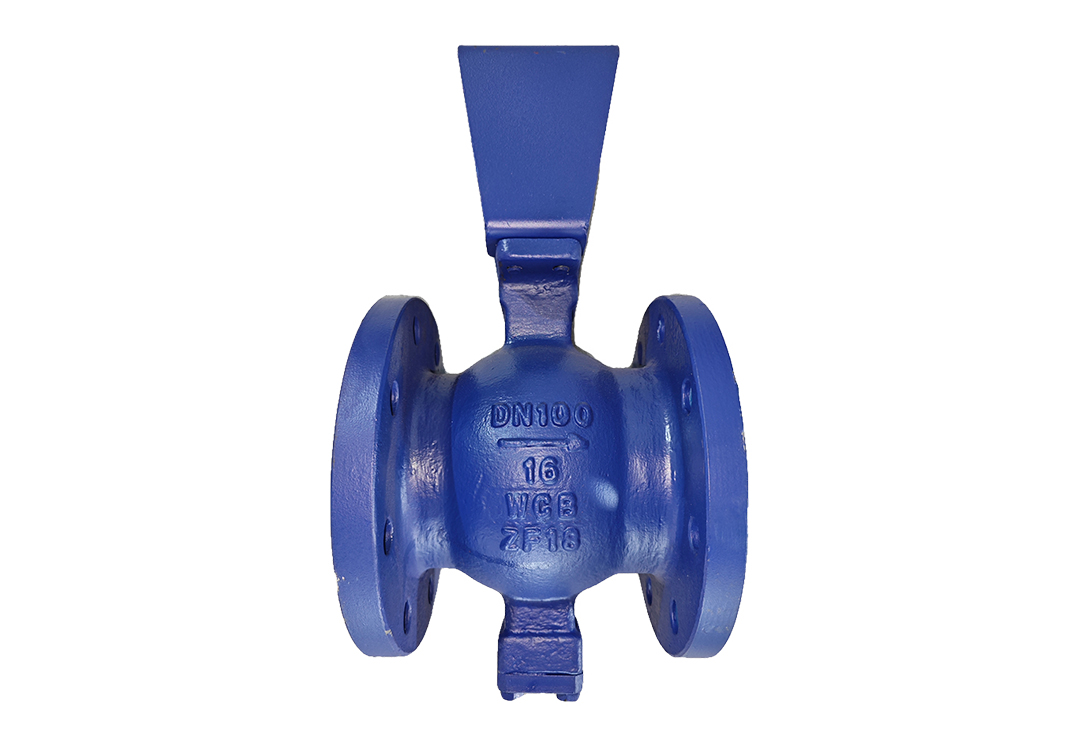

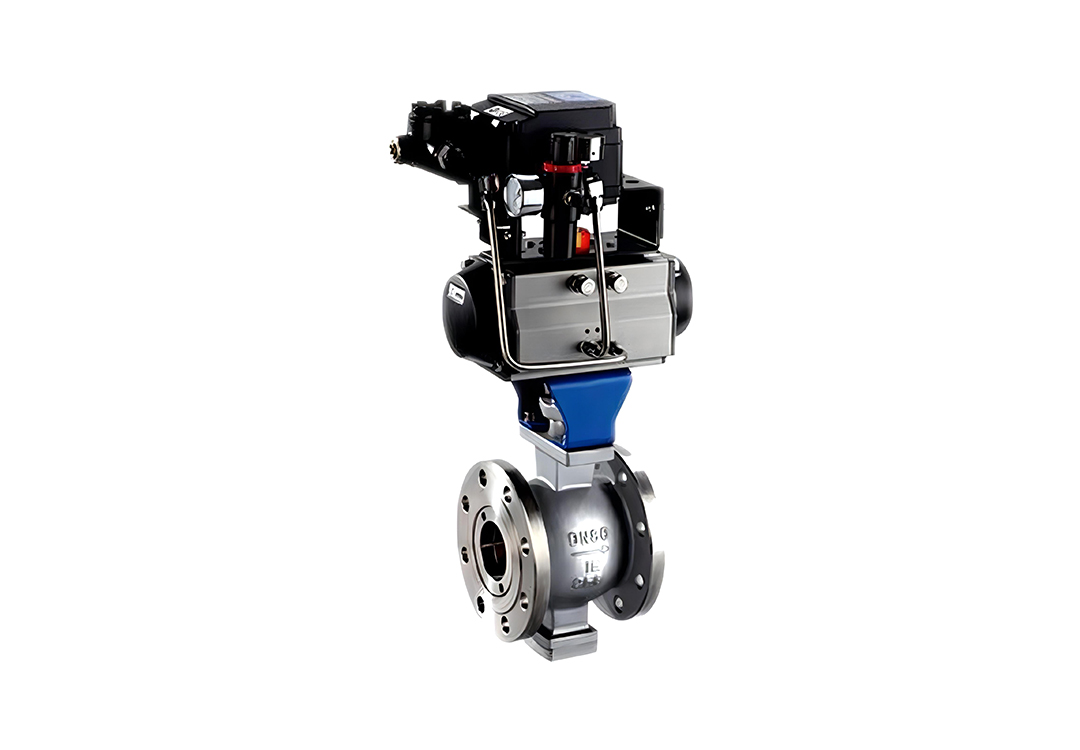

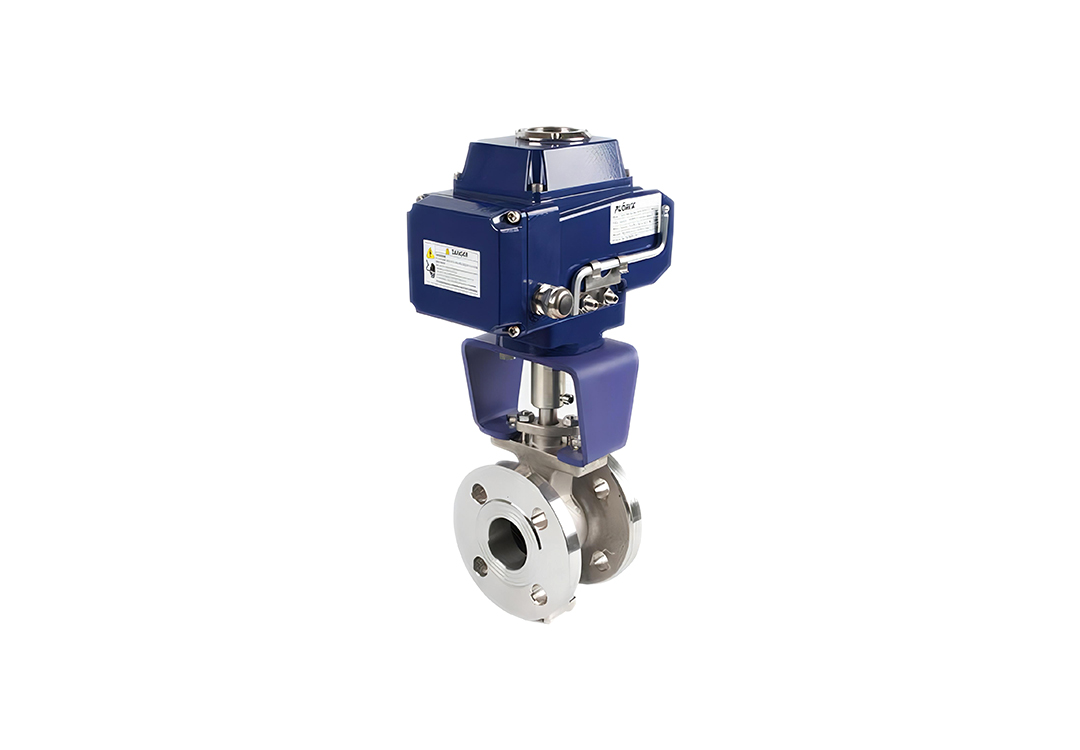

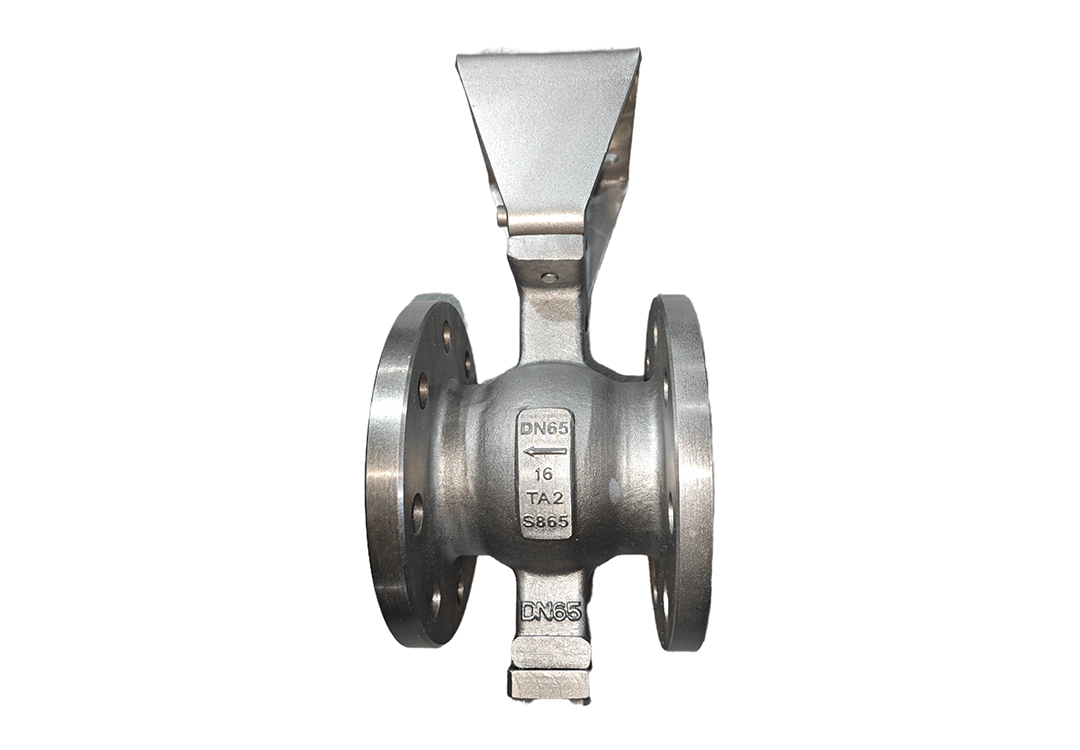

Lipin's Comprehensive Range of V type ball valve
