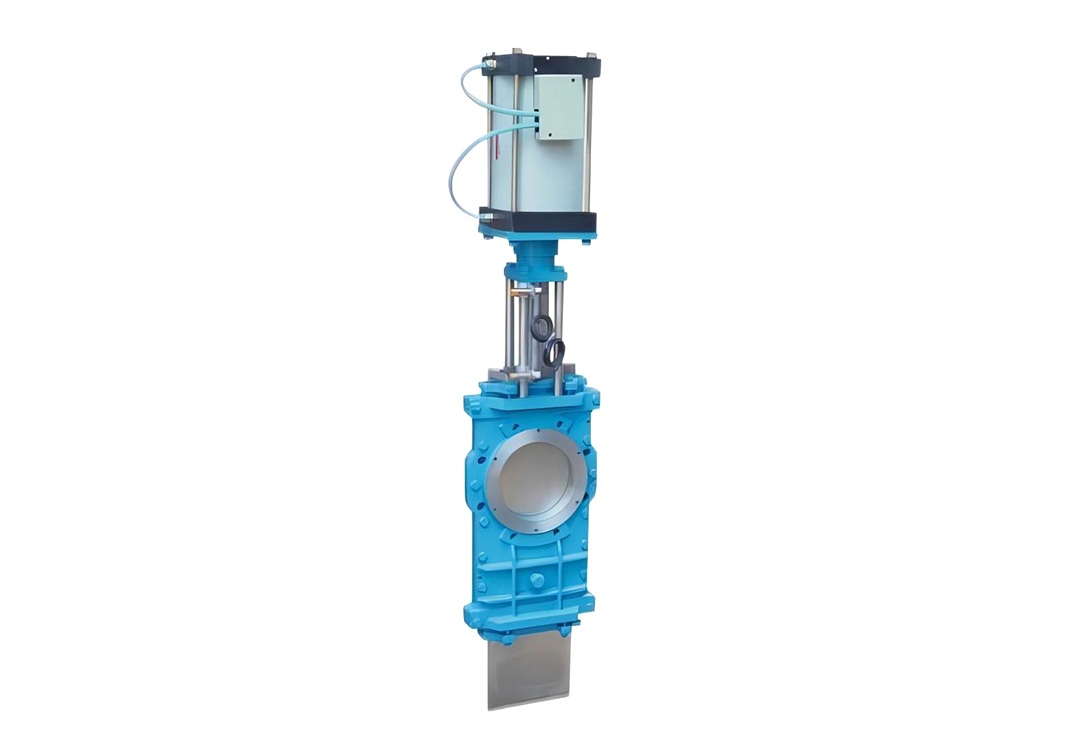

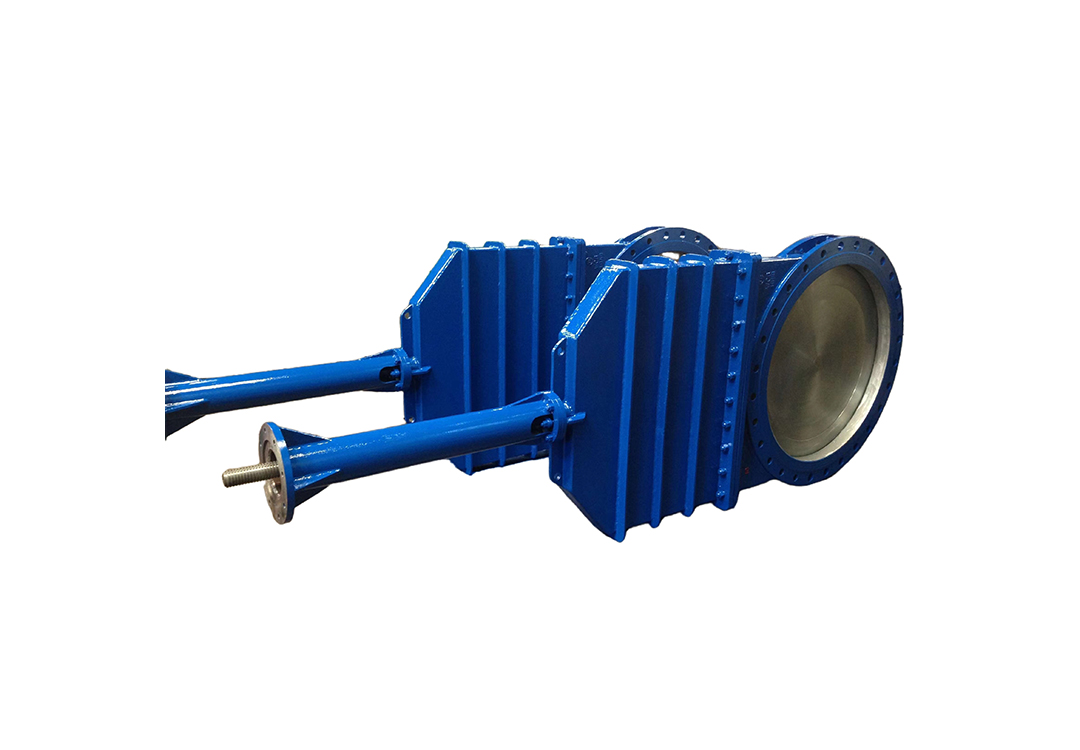

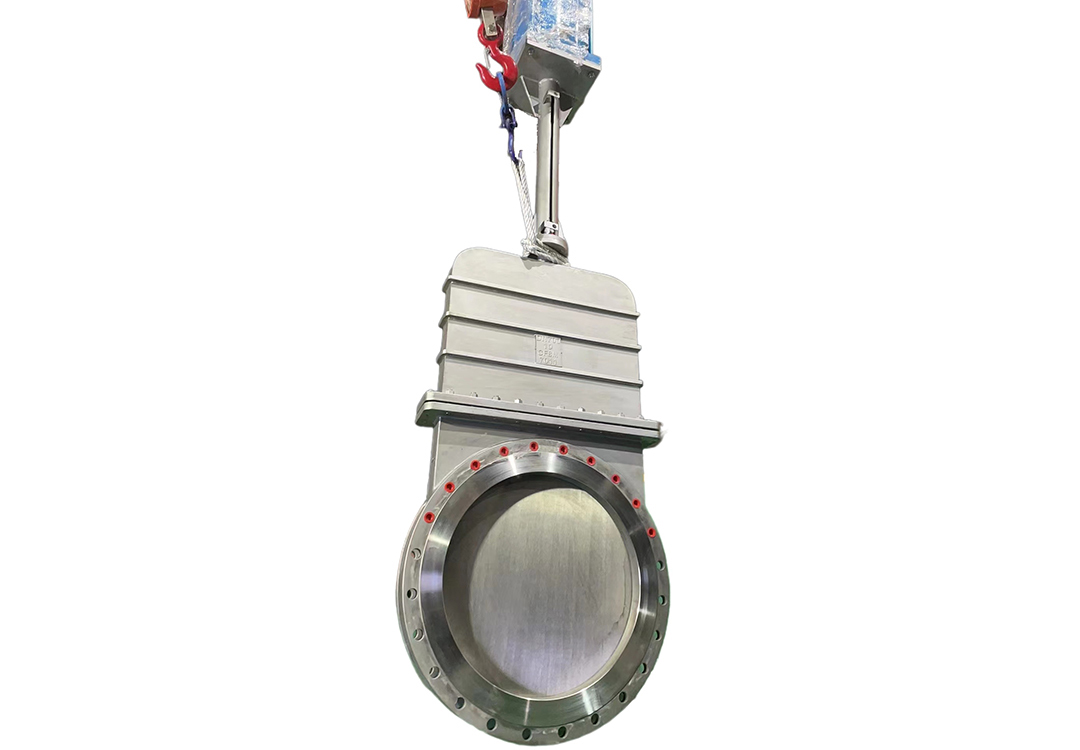

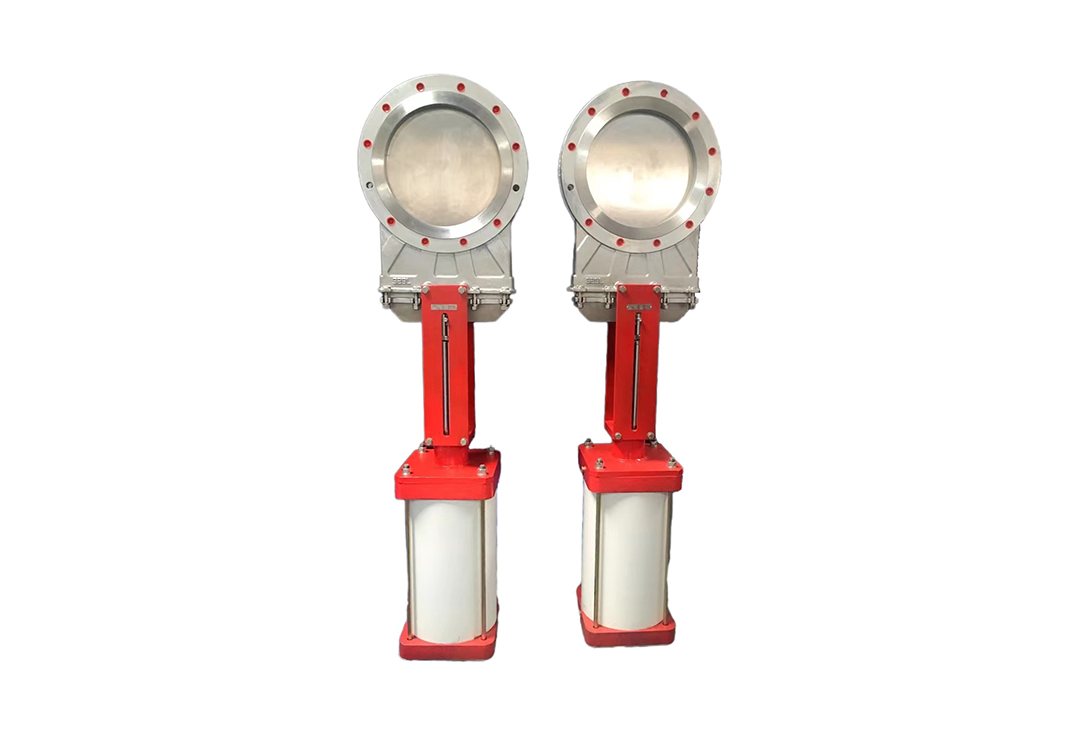

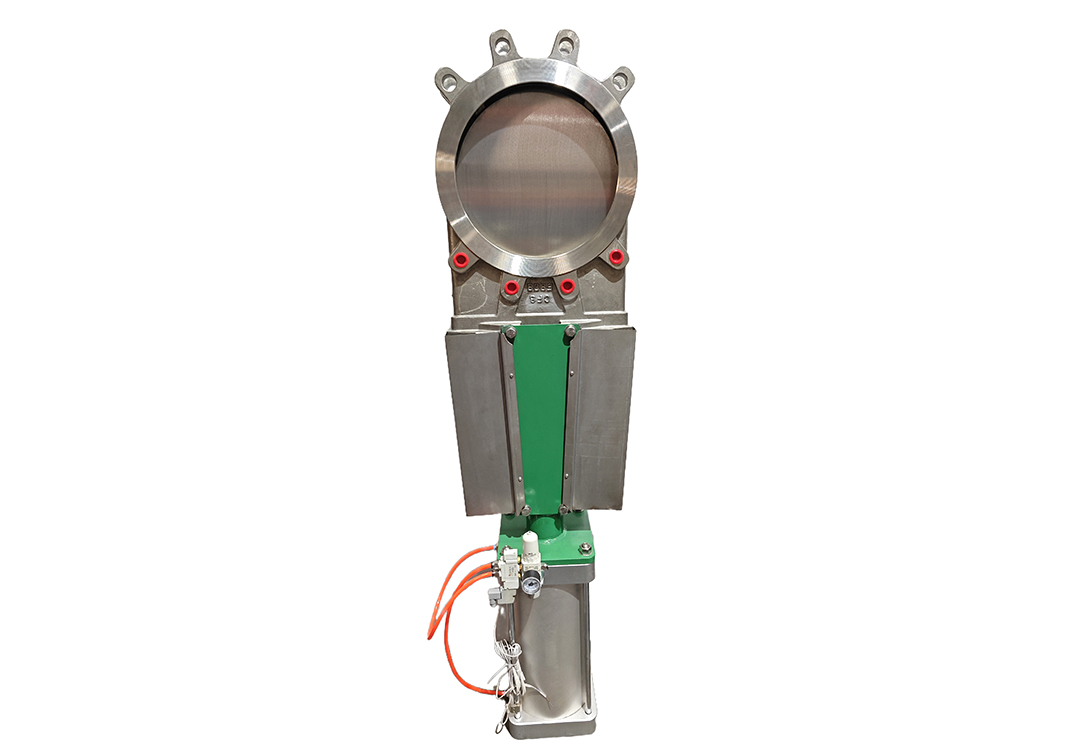

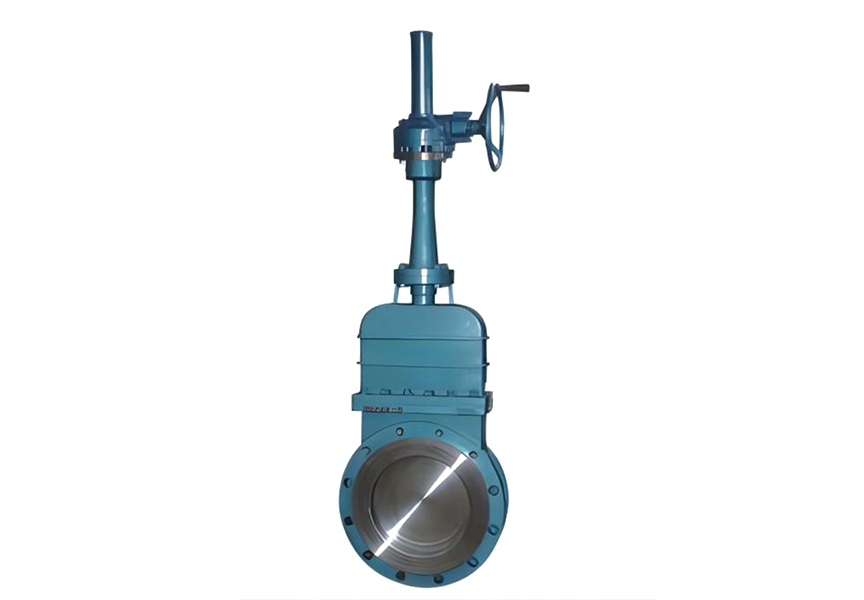

Through Conduit Knife Gate Valve

Through conduit knife gate valves feature a full-bore design with no obstructions in the flow path, allowing for unrestricted flow of fluids, slurries, and solids. This design minimizes flow resistance and pressure drop across the valve, resulting in efficient fluid control and reduced energy consumption. Through conduit knife gate valves are widely used in industries such as oil and gas, mining, and power generation, where large volumes of fluids or solid materials need to be transported with minimal friction and turbulence.

+86 17357466831

lip@lipvalve.com

Design Advantages

Unobstructed Flow Path: The through conduit knife gate valve features a design that allows for an unobstructed flow path, ensuring smooth operation and minimal flow resistance.

Reliable Sealing: Equipped with a knife gate mechanism, the valve provides tight sealing to prevent leakage and maintain system integrity during operation.

Robust Construction: Constructed with robust materials, the valve is durable and able to withstand harsh operating conditions for long-term reliability.

Wide Range of Applications: Suitable for use in industries such as oil and gas, mining, wastewater treatment, and power generation, where reliable flow control is essential.

Minimal Maintenance: Designed for minimal maintenance requirements, the valve reduces downtime and operational costs while maximizing efficiency.

Easy Installation: The through conduit design allows for easy installation and maintenance, minimizing downtime and reducing overall costs.

Technical Parameters

Size	DN15-DN2000, 1/2''-80''
Pressure	PN10-PN420, Class150-Class2500
Temperature	-200℃ to 650℃
Connection type	Flange, Thread, Socket weld, Butt weld
Operation mode	Manual, Pneumatic, Electric, Hydraulic, Gear transmission

Materials

Valve Body	Forged	A105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, etc
	Cast	WCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc
Valve Stem		F6a, 17-4PH, XM-19, F304, F316, F347, F904, F51, F53, F310, Monel400, Monel500, N08020, Inconel625, Incoloy825，etc
Valve Disc		A105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, F6a, 17-4PH, XM-19, F304, F316, F347, F904, F51, F53, F310, Monel400, Monel500，Incoloy825，WCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc
Seat Sealing		SS,BR,CU,AS,CS,AL,PTFE,NBR,FKM,AI203,etc

Design Standards

Valve Body	API 600, API 602, ASME B16.34, DIN 3352, BS 5163, GOST 5762, JIS B2073, GB/T 12233, etc.
Flange	ANSI B16.34, EN 1982, JIS B2210, GB/T 17241, ASME B16.42, GOST 12815, DIN 3202-1, etc.
Connection	ANSI B16.10, ASME B16.25, JIS B2212, GOST 33259, DIN 3202, etc.
Test Standards	API 598, ISO 5208, BS EN 12266, ASME B16.104, GOST 9544-2015, JIS B2003, DIN 3230, etc.

The careful selection of design standards for Through Conduit Knife Gate Valve is crucial to ensure adherence to international quality and safety benchmarks. By complying with these standards, Through Conduit Knife Gate Valve offer outstanding performance, longevity, and suitability across various installations and applications.
