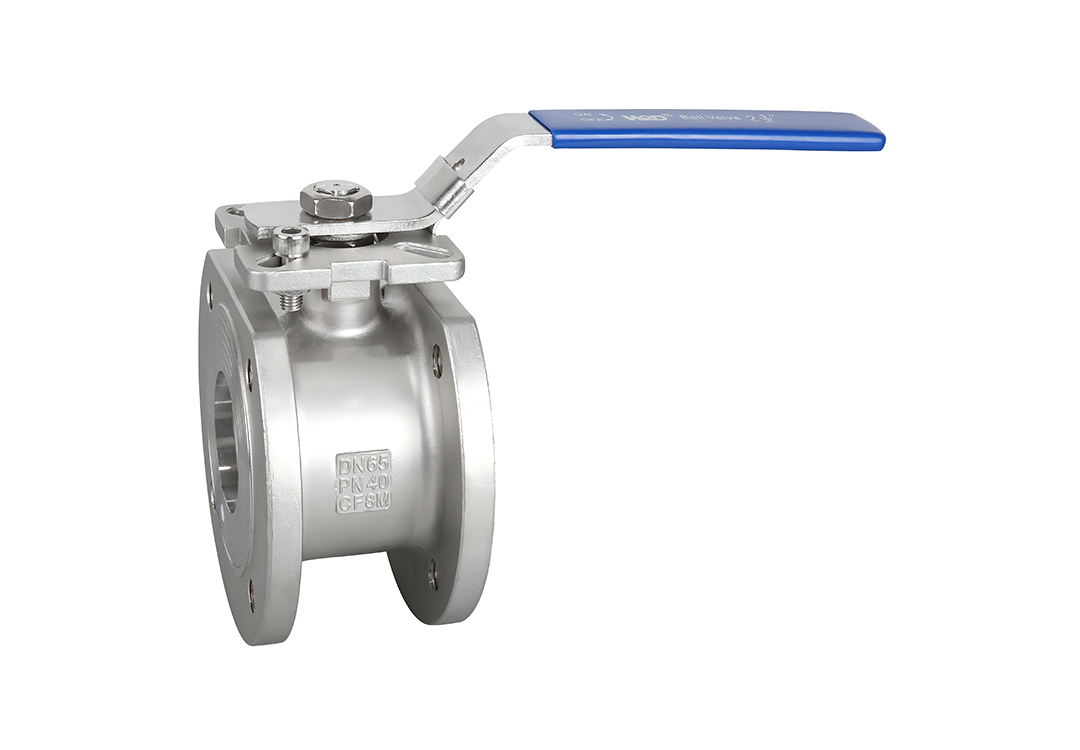

Thin Type Ball Valve

Thin type ball valves are perfect for installations where space is limited and reliable performance is essential. These valves are designed with compact bodies, and the upstream and downstream seats operate independently to maintain a strong seal. Often equipped with lubrication ports, these valves allow for easy injection of lubricants to enhance sealing effectiveness. Thin type ball valves exhibit very low fluid resistance, ensuring smooth functionality even without additional lubrication. They are particularly suitable for managing corrosive media and fluids with low boiling points, providing dependable performance in demanding environments.

+86 17357466831

lip@lipvalve.com

Design Advantages

Excellent Sealing Efficiency: Ensures reliable sealing with minimal effort needed for opening and closing.

Minimal Flow Resistance: Offers near-zero flow resistance, promoting efficient fluid movement.

Smooth Operation: Allows rapid opening and closing without causing operational shocks or impacts.

Enhanced Safety Features: Equipped with fire and anti-static protections to ensure safe operation.

Anti-Ejection Design: Prevents the valve stem from being ejected from the valve body due to incorrect handling.

Adjustable Stem Length: The valve stem can be extended to meet specific installation or operational requirements.

Technical Parameters

Size	DN15-DN1500, 1/2''-60''
Pressure	PN10-PN420, Class150-Class2500
Temperature	-200°C to 650°C
Connection type	Flange, Thread, Socket weld, Butt weld
Operation mode	Manual, Pneumatic, Electric, Hydraulic, Gear operation

Materials

Valve Body	Forged	A105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, etc
	Cast	WCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc.
Valve Stem		F6a, 17-4PH, XM-19, F304, F316, F347, F904, F51, F53, F310, Monel400, Monel500, N08020, Inconel625, Incoloy825, etc.
Valve Disc		A105, LF2, F5, F9, F11, F22, F304, F316, F347, F904, F51, F53, F310, N08020, Inconel625, F6a, 17-4PH, XM-19, F304, F316, F347, F904, F51, F53, F310, Monel400, Monel500，Incoloy825，WCB, LCB, C5, C12, WC6, WC9, CF8, CF8M, CF8C, 4A, 5A, CN7M, C95800, CW6MC, etc.
Seat Sealing		SS, BR, CU, AS, CS, AL, PTFE, NBR, FKM, AI203, etc.

Design Standards

Valve Body	API 6D, API 608, ASME B16.34, DIN 3357, BS 5351, GOST 9833, JIS B2071, GB/T 12237, etc.
Flange	ANSI B16.5, EN 1092-1, JIS B2220, GB/T 9113, ASME B16.47, GOST 12821, DIN 2543-2545, etc.
Connection	ANSI B16.10, ASME B16.25, JIS B2212, GOST 33259, DIN 3202, etc.
Test Standards	API 598, ISO 5208, BS EN 12266, ASME B16.104, GOST 9544-2015, JIS B2003, DIN 3230, etc.

The precise selection of design standards for Thin Type Ball Valve ensures that the product meets international quality and safety benchmarks. Compliance with these standards guarantees valve performance, reliability and compatibility in different installations and applications.
