Three Way Ball Valve

Three Way Ball Valve
Take you to reveal
The three way ball valve
Three way ball valve is a new type of ball valve, which has characteristics of no friction on the switch, low sealing wear, and low opening and closing torque. It has T-type and L-type. T-type can connect three orthogonal pipelines, cut off the third channel, and play a role in diversion and convergence. L-type ball valve can only connect two orthogonal pipelines and cannot maintain the connection of the third pipeline at the same time, just for distribution.

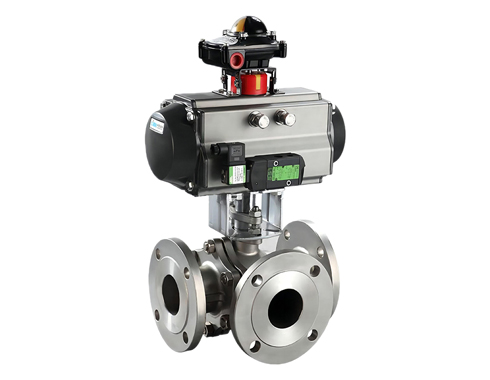

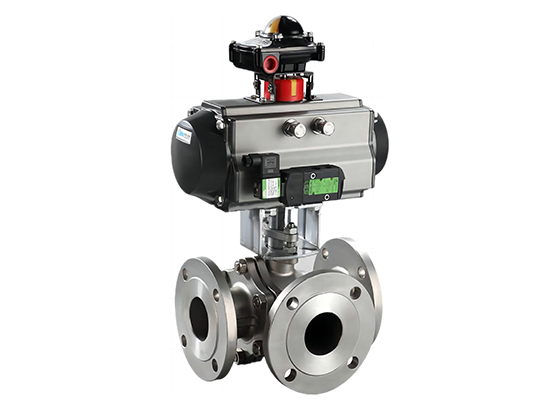

Data SheetFor detailed specifications of the three way ball valve, please click on the product image above or the "view" button below.

Why Choose Lipin's three way ball valve

The three way ball valve is a control device used in pipeline systems, achieving fluid distribution and merging. It controls the flow of fluid by rotating the ball; The valve has the advantages of easy maintenance, simple structure, and detachable and replaceable sealing rings. In addition, when fully open or fully close, the sealing surfaces of the ball and valve seat are isolated from the medium, and the medium will not corrode the sealing surface when passing through.
  • Channel design
    T-type and L-type channel design, achieving diversion and convergence effects.
  • Material diversity
    We use corrosion-resistant and high-pressure resistant materials to enable the valve to function even under extreme conditions. Such as traditional carbon steel, Inconel and Monel.
  • Comprehensive coverage of fields
    From the chemical industry, petroleum industry to the paper industry, there are applications of Lipin three-way ball valves.
  • Undoubted quality
    We never overlook every detail. Every valve has zero leakage, and strictly complies with design and testing standards.
  • Diverse operating methods
    Handle, worm gear, pneumatic actuator, electric actuator, hydraulic actuator, gas-liquid linkage actuator, electro-hydraulic linkage actuator.
  • Top service team
    Our company's one-stop valve solution helps our customers solve many concerns and troubles. Not only that, we also provide a two-year warranty for our products. If you are interested, you can contact us to get a plan.

Key Components of Three Way Ball Valves

The three way ball valve mainly consists of the following six parts. This component ensures that the three way ball valve remains efficient and stable during operation and maintains a zero leakage record.
  • Body
    Guides the flow of media.
  • Ball
    The medium passes through or is intercepted by the sphere.
  • Stem
    Drives the ball to open and close quickly through 90° rotation.
  • Seat
    Contact with the ball to form a seal.
  • Sealing surface
    Soft seal and metal seal.
  • Actuator
    The movement of a valve that controls the valve stem.
  • Advantages of

    Three Way Ball Valves

    • 01
      The structure adopts
      The structure adopts an integrated, four-sided valve seat sealing type, with fewer flange connections, achieving lightweight design.
    • 02
      After depressurization of the system
      After depressurization of the system, inspection and maintenance can be carried out without disassembling the entire valve body.
    • 03
      The three way ball valve
      The three way ball valve can be designed with different ball channel structures as needed, such as T-type and L-type channels, to adapt to different flow rates and working requirements.
    • 04
      The elastic deformation of PTFE
      The elastic deformation of PTFE material for the four side valve seat can achieve leak free sealing.
    • 05
      With diameters ranging
      With diameters ranging from a few millimeters to several meters,  the valve can be applied from high vacuum to high pressure.

    Why Choose Three Way Ball Valves?

    When the three-way ball valve is fully opened or fully closed, the ball is completely isolated from the medium to avoid corrosion problems; In the adjusted state, the ball valve ensures tightness through the surface treatment of its precision. The flow channel of the valve body is usually designed as a streamlined shape to reduce the turbulence and vortex of the fluid medium. It looks neat in appearance, and is relatively compact in structural design, saving space. The valve also has a ultra-small operating torque and adjustable limit.

    About Lipin Three Way Ball Valve

    • Valve Body Type :
      Ball
    • Valve Body Material :
      Cast WCB carbon steel (general application), forged A105 carbon steel (general application), 304/316 stainless steel, alloy (corrosion resistance, extreme conditions), etc.
    • Valve Stem Material :
      When the valve body material is ordinary carbon steel, the valve stem material is usually CR13 series martensitic stainless steel (American standard 410 and 420 stainless steel materials) or higher-grade austenitic stainless steel materials. When the valve body material is stainless steel, the valve stem material is usually austenitic stainless steel (American standard SS304, SS316) with a grade no lower than the valve body material and a higher grade corrosion-resistant alloy material (Hastelloy, Monel, Inconel alloy) etc.
    • Valve ball material:
      The valve stem material is basically the same as the valve ball, plus carbon steel electroplating ENP anti-corrosion material, unless there are special requirements.
    • Seat material:
      The metal-sealed metal valve seat and fixed soft-sealed valve seat support ring of the ball valve should be made of the same material as the ball.
    • Seat sealing surface material:
      The valve seat material is basically the same material as the ball, except for special requirements.
    • Pressure level:
      Class 150-2500(ASME standards)or PN10~PN420
    • Actuator:
      Manual handwheel, electric actuator, pneumatic actuator, hydraulic actuator
    • Size:
      1/2'' to 60'' (DN 15-1500)
    • Temperature:
      Depending on the material used, operation can occur within a temperature range of -50°C to +400°C, although specific materials may alter this range.
    About the Application of

    Lipin Three Way Ball Valve

    • Oil and Gas Industry
    • Chemical Industry
    • Steam Systems
    • Pharmaceutical Manufacturing
    • Water Management and Supply
    • Construction Sector
    • Energy Industry
    • Water Treatment
