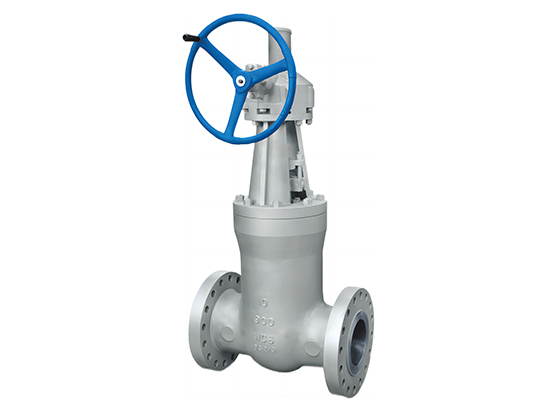

Single Disc Wedge Gate Valve

Optimal Flow Isolation
Unveiling Lipin's Single Disc Wedge Gate Valves

Lipin excels in crafting single disc wedge gate valves, a staple for streamlined flow control in industries like water management and construction. These valves, known for their single wedge design, ensure precise flow regulation and tight sealing, vital for system integrity. Available in sizes ranging from small to large diameters, they cater to a broad spectrum of applications. Lipin's valves boast materials like durable carbon steel or stainless steel, catering to various environmental demands. Their commitment to quality ensures a balance of reliability, efficiency, and long-term performance in every valve.

Why Choose Lipin's Single Disc Wedge Gate Valve

Lipin distinguishes itself in the valve industry with its single disc wedge gate valves, integral for precise fluid control in various systems. Let's delve into why Lipin's single disc wedge gate valves are an excellent choice:

Optimized Design

The single disc wedge design ensures tight sealing and streamlined flow, crucial for applications requiring precise flow regulation.
Material Diversity

Lipin provides these valves in robust carbon steel for standard needs, as well as in 316 stainless steel and duplex stainless steel for enhanced corrosion resistance.
Application Versatility

These valves are ideal for a range of sectors, from water treatment to construction, offering reliable performance across diverse applications.
Adherence to Standards

Adhering to ASME 150 and 300 standards, Lipin's valves guarantee top-notch quality and performance, ensuring durability and safety.
Customer Support Commitment

Lipin’s dedication to customer service includes extensive support, ensuring optimal functioning throughout the valve's lifespan.

Key Components of Single Disc Wedge Gate Valve

The Single Disc Wedge Gate Valve mainly consists of the following eight parts. This component ensures that the gate valve remains efficient and stable during operation and maintains a zero leakage record.

Valve Body

Encases the valve's internal mechanisms and guides fluid flow.

Disc

The wedge-shaped component, pivotal in regulating or halting fluid flow.

Stem

Connects the disc to the control mechanism, facilitating opening and closing.

Gasket

Ensures a tight seal between the body and bonnet, preventing external leaks.

Handwheel or Actuator

Enables manual or automated control of the disc's position.

Seat

Interacts with the disc to create a seal, preventing leaks when closed.

Yoke

Holds the stem and actuator, maintaining alignment for smooth operation.

Bonnet

The top part of the valve, sealing the internal parts and providing structure.

Why Choose Single Disc Wedge Gate Valve?

Selecting the right gate valve is crucial for efficient and reliable fluid control. Single disc wedge gate valves stand out for their robust design, exceptional sealing capabilities, and ease of operation. They provide precise flow regulation, making them suitable for various industrial applications. Their durability and low maintenance requirements offer long-term operational efficiency and cost savings. Investing in these valves ensures a blend of performance, safety, and economic value, essential for modern fluid control systems.

About Lipin Single Disc Wedge Gate Valve

Body Type:

Compact and Robust Design
Body Materials:

Available in carbon steel for general use, and 316 stainless steel or duplex stainless steel for higher corrosion resistance.
Stem Material:

Typically made of stainless steel for durability and resistance to corrosion.
Seat Material:

Options include metal-seated for high durability and soft-seated with materials like NBR or EPDM for enhanced sealing.
Disc Material:

Precision-engineered using durable materials like stainless steel, often coated for extra wear resistance.
Bearings:

Designed to minimize internal friction, enhancing operational smoothness and valve longevity.
Pressure Ratings:

Ranging from Class 150 to Class 2500, following ASME standards or PN10 to PN420.
Actuators:

Compatible with various actuators including manual, electric, and pneumatic for versatile operation.
Size:

Offered in sizes from 1/2'' to 60'' (DN15-DN1500), catering to diverse industrial requirements.
Temperature:

Suitable for a wide range of temperatures, with special materials available for extreme conditions.

Lipin Single Disc Wedge Gate Valve

Lipin's Single Disc Wedge Gate Valves are known for their streamlined operation and tight sealing, making them highly suitable for a range of industrial applications.

Oil and Gas Industry
Chemical Industry
Steam Systems
Pharmaceutical Manufacturing
Water Management and Supply
Construction Sector
Energy Industry
Water Treatment
