Bonnet Welded Globe Valve

Streamlined Fluid Mastery

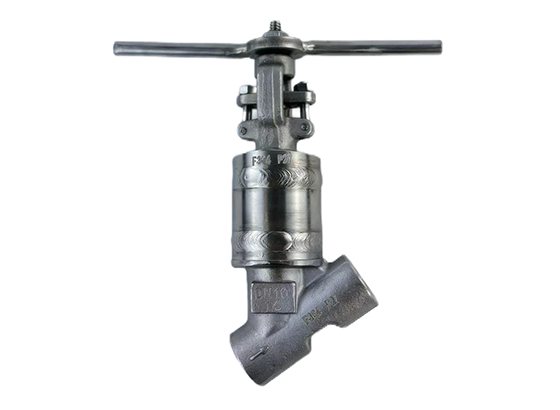

Unveiling Bonnet Welded Globe Valves by Lipin

Lipin is proud to present its elite range of bonnet welded globe valves, precision-engineered for the unique needs of the energy and petrochemical domains. Epitomizing the zenith of seal technology, these valves incorporate a foolproof bonnet weld. Transcending conventional valve designs, Lipin's series prioritizes pristine flow regulation, ensuring negligible internal leakages and maximizing seal robustness.Encompassing sizes from 1/2'' to 24 inches (DN 15-600), these globe valves showcase unmatched versatility, making them indispensable in diverse settings from high-pressure fluid systems to complex petrochemical operations. Upholding stringent DIN and ISO certifications, each valve is equipped with a meticulously crafted secondary seal. For material choices, clientele can lean on the enduring strength of traditional carbon steel or delve into the high-endurance of materials like Inconel or Monel alloys.With an unyielding focus on safety and precision, Lipin reaffirms its stature as a trailblazer in advanced valve engineering.

Data SheetFor detailed specifications of the bonnet welded globe valve, please click on the product image above or the "view" button below.

Phone: +86 17357466831

Email: lip@lipvalve.com

{pboot:whatsApp}:8617357466831

Get in touch

Why Choose Lipin's Bonnet Welded Globe Valves

Lipin, a paragon in the valve industry, proudly presents its top-tier bonnet welded globe valves. Here's a deep dive into the multifaceted attributes making Lipin's bonnet welded globe valves a distinguished pick for connoisseurs.

Impenetrable Seal Dynamics

The cornerstone of Lipin's bonnet welded globe valves is their impeccably designed welded bonnet structure. This innovation ensures zero internal leakage, vouching for a resilient seal that remains unwavering amidst dynamic temperature and pressure shifts.
Unmatched Material Diversity

Venturing past the realms of conventional carbon steel, Lipin introduces groundbreaking materials such as Inconel and Monel alloys. These choices act as stalwart defenders against potential corrosion, especially in hostile conditions.
Broad Operational Horizon

Be it high-pressure steam systems, intricate petrochemical refining, or advanced fluid transfer setups, Lipin's bonnet welded globe valves flawlessly adapt, promising precision and unyielding performance.
Adherence to Exacting Protocols

Lipin's dedication to excellence is manifested in their uncompromising alignment with DIN and ISO standards. Additionally, their globe valves feature state-of-the-art secondary seal systems tailored for an array of specialized industrial requirements.
Unrivaled Customer Engagement

Choosing Lipin transcends a mere product purchase; it signifies forging a partnership with an adept support brigade, perennially at your service, assisting you through every operational intricacy.
Professional Service Team

Our company provides one-stop service from product selection to final valve delivery. We will deliver the goods to the collection point within the specified delivery period. Buyers only need to wait for the product to be delivered at.

Key Components of Bonnet-sealed Globe Valves

The Bonnet-sealed Globe Valves mainly consists of the following nine parts. This component ensures that the globe valve remains efficient and stable during operation and maintains a zero leakage record.

Valve Body

Directs the flow of fluid.

Disk

Modulates fluid flow via its positioning.

Stem

Enables the functioning of the valve.

Bonnet Seal

Assures no leakage.

Actuating Device

Dictates the valve's movement.

Metallic Gaskets

Affirm a secure seal.

Top Cap

Shelters and secures the valve's inner components.

Movement Restrictors

Govern the valve's range of motion.

Bearings

Minimize mechanical friction.

Advantages of

Bonnet-Welded Globe Valves

01

Streamlined and Sturdy

Crafted meticulously, these valves are both space-efficient and resilient, aptly suited to handle various pressure differentials and rigorous applications.
02

Superior Welded Sealing

Bonnet-welded globe valves, employing a high-integrity welded seal, promise unmatched sealing performance, eliminating potential stem leaks and bolstering operational dependability.
03

Precise Fluid Regulation

The distinctive design of the globe valve, combined with the welded bonnet, assures exact flow modulation, translating to consistent and trustworthy operations.
04

Optimal for High-Temperature Scenarios

Bonnet-welded globe valves stand out in situations experiencing significant temperature fluctuations, due to their robust welded sealing.
05

Safety Paramount

The welded bonnet acts as a fortified sealing barrier, reducing leakage possibilities and championing operational safety.

Why Choose Bonnet-Welded Globe Valves?

In the spectrum of fluid control, the integrity and efficiency of the tool are crucial. Bonnet-welded globe valves manifest this principle. Boasting a fusion of precise welding and superior design, they bring forth merits that elevate them above traditional valves. Their unmatched sealing prowess, enduring nature, and suitability for varied settings demonstrate their technical superiority. For industries where precision and longevity are key, selecting bonnet-welded globe valves represents a commitment to unparalleled performance and enduring excellence.

About Lipin Bonnet Bolted Globe Valve

Body Type:

Globe
Body Materials:

WCB carbon steel (suitable for standard applications), 304 stainless steel, and alloy C-276 (for advanced corrosion resistance scenarios), among others.
Spindle Material:

Typically manufactured from stainless steel or materials compatible with the body to mitigate galvanic corrosion risks.
Bonnet Seal:

Employs a bolted design, ensuring secure attachment and enhanced sealing against potential leaks.
Plug Material:

Generally made of stainless steel, brass, or specialized alloy, with possible modifications for specific tasks.
Bearings:

Primarily crafted from phosphor bronze or PTFE, optimized for long-lasting performance and to minimize friction during valve operations.
Pressure Ratings:

Class 150-2500 (complying with ASME standards) Or PN16~PN250
Actuators:

Manual lever, electric actuator, hydraulic actuator
Size:

Available in sizes from 1/2'' to 24'' (DN 15-600)
Temperature:

Based on the materials selected, but on average, the bolted bonnet can operate in temperatures spanning from -40°C to +350°C, with specific materials potentially modifying this range.

About the Application of

Lipin Bonnet Welded Globe Valve

Bonnet welded globe valves are paramount in the domain of valve engineering. Their meticulous design, characterized by a welded bonnet, provides unparalleled sealing capabilities, making them vital in scenarios that mandate a stringent leak prevention regimen. The robust welded bonnet design ensures an impeccable seal, preventing both external and internal leaks, positioning these valves as the preferred choice for many industrial applications.

Oil and Gas Industry
Chemical Industry
Steam Systems
Pharmaceutical Manufacturing
Water Management and Supply
Construction Sector
Energy Industry
Water Treatment
