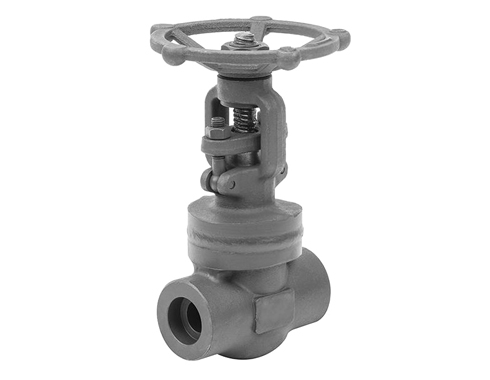

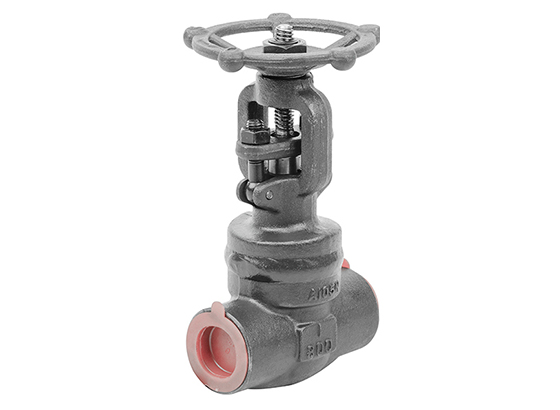

Bonnet Welded Gate Valve

Secure and Durable
Lipin's Bonnet Welded Gate Valves

Lipin is proud to present its line of bonnet welded gate valves, tailored for high-pressure and critical applications. These valves, known for their welded bonnet design, provide exceptional strength and leak-proof sealing, essential for maintaining system integrity. Available in sizes ranging from 1/2 to 60 inches (DN 15-1500), they meet diverse industrial requirements, from fluid control in power plants to handling aggressive media in chemical processing. Each valve adheres to ANSI/ASME B16.34 standards, ensuring top-quality and durability. Material options include robust carbon steel, 316 stainless steel, and duplex stainless steel, chosen for their resistance to corrosion and high-pressure environments. Lipin's bonnet welded gate valves stand out for their robust construction and reliable performance, ensuring long-term operational efficiency and safety.

Data SheetFor detailed specifications of the bonnet welded gate valve, please click on the product image above or the "view" button below.

Phone: +86 17357466831

Email: lip@lipvalve.com

{pboot:whatsApp}:8617357466831

Get in touch

Why Choose Lipin's Bonnet Welded Gate Valve

Lipin's bonnet welded gate valves are a testament to their commitment to excellence in the valve industry. Here's why these valves are an optimal choice:

Robust Construction

The bonnet welded design of these valves ensures unmatched strength and leak-proof performance, crucial for high-pressure applications and ensuring system safety.
Material Versatility

Lipin offers these valves in a range of materials, including carbon steel for standard needs and 316 or duplex stainless steel for enhanced corrosion resistance, suitable for diverse industrial environments.
Tailored for Demanding Applications

These valves are ideal for sectors like oil and gas, petrochemicals, and water treatment, where durability and reliability are paramount.
Adherence to Standards

Crafted in line with ASME 150 and 300 standards, Lipin's valves guarantee quality and longevity, ensuring they withstand rigorous operational demands.
Unparalleled Support

Lipin provides comprehensive customer support, reflecting their dedication to client satisfaction and long-term valve performance.

Key Components of Bonnet Welded Gate Valve

The Bonnet Welded Gate Valve mainly consists of the following eight parts. This component ensures that the gate valve remains efficient and stable during operation and maintains a zero leakage record.

Valve Body

Encases the valve mechanism, providing structural integrity.

Gate

The primary component that modulates fluid flow

Stem

Facilitates gate movement for flow regulation.

Seat

Interfaces with the gate to ensure a tight shut-off

Handwheel or Actuator

Enables manual or automated gate operation.

Gaskets

Enhance sealing between body and bonnet components.

Bonnet

Welded to the body, ensuring a secure, leak-proof seal.

Metal Seals

Advantages of

Bonnet Welded Gate Valve

01

Durable and Reliable

These valves are renowned for their durability, capable of withstanding high pressures and extreme temperatures, making them ideal for demanding industrial applications.
02

Versatility in Applications

These valves are suitable for a wide range of industrial applications, from oil and gas to water treatment, thanks to their robust construction and reliable performance.
03

Streamlined Flow Control

The gate mechanism in these valves allows for precise flow control, making them highly effective for regulating fluid dynamics in various systems.
04

Corrosion Resistance

Available in materials like stainless steel and carbon steel, bonnet welded gate valves offer excellent resistance to corrosion and chemical degradation.
05

Enhanced Safety Features

The welded construction ensures a stronger, more reliable connection between the bonnet and the body, which is crucial in high-pressure environments.

Why Choose Bonnet Welded Gate Valve?

Opting for bonnet welded gate valves means investing in a blend of strength, reliability, and efficiency. Their design prioritizes a secure seal, durability under challenging conditions, and effective flow control, making them an ideal choice for critical industrial applications. Their robust construction and low maintenance demands represent not just a solution for current needs but a long-term investment in stable and efficient system operation.

About Lipin Bonnet Welded Gate Valve

Body Type:

Robust and Secure
Materials:

Options include carbon steel for general use, 316 stainless steel, and duplex stainless steel for superior corrosion resistance.
Bonnet:

Welded design ensures a strong, leak-proof seal.
Gate:

Precision-engineered for effective flow control, typically made from durable stainless steel.
Sealing:

Metal or soft-seated options available, including NBR or EPDM, for optimal tightness.
Pressure Ratings:

Conform to Class 150-Class 2500 (ASME standards) or PN10-PN420.
Operation:

Typically operated via handwheel or gear mechanisms.
Temperature Range:

Varies with materials but generally handles -196°C to +540°C.
Size Range:

From 1/2'' to 60'' (DN15-DN1500), accommodating diverse industrial needs.

About the Application of

Lipin Bonnet Welded Gate Valve

Lipin's bonnet welded gate valves are recognized for their robust design, ensuring reliable performance in diverse sectors where durability and tight sealing are paramount.

Oil and Gas Industry
Chemical Industry
Steam Systems
Pharmaceutical Manufacturing
Water Management and Supply
Construction Sector
Energy Industry
Water Treatment
