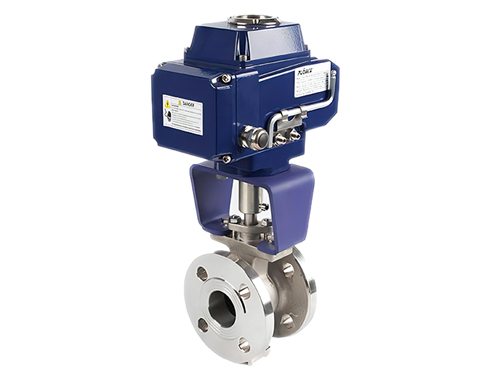

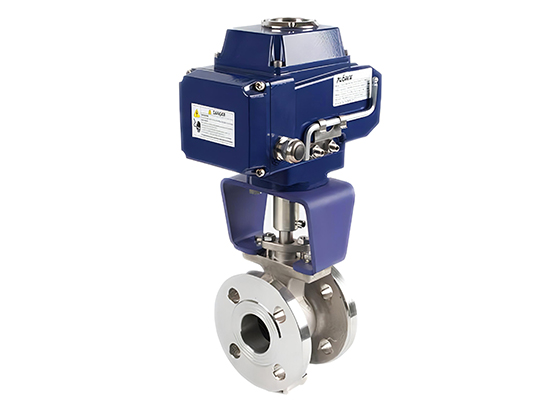

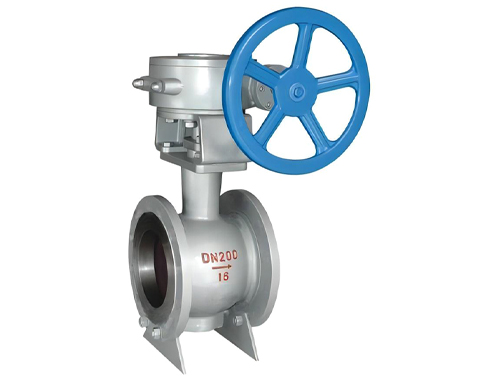

V port ball valve

V-port ball valves come in handy
when precise flow control and higher pressure ball valves are needed

The V-shaped port ball is designed with V-shaped grooves for more controlled and precise flow regulation. Unlike standard ball valves, V-port ball valves have linear flow characteristics that make them ideal for applications requiring precise flow control. The V-port design ensures a gradual increase in flow when the valve is opened, preventing sudden surges or drops in pressure. Since the ball is firmly secured and rotated 90° to regulate the flow, it can handle extraordinary fluid forces and high pressures without compromising the integrity of the valve. This design gives V-port ball valves high reliability in applications where high pressure and precise flow control are critical.

Data SheetFor detailed specifications of the V port ball valve, please click on the product image above or the "view" button below.

Phone: +86 17357466831

Email: lip@lipvalve.com

{pboot:whatsApp}:8617357466831

Get in touch

Why choose Lipin's V-port ball valve

V-port ball valves are ideal for precise flow control and high pressure applications. The unique V-shaped groove enables more controlled and accurate flow regulation, making it suitable for a variety of industries. Lipin's V-port ball valves stand out for the following reasons:

Adapted to high pressure and precise flow control

V-port ball valves are ideal for applications requiring high pressure and precise flow control, including natural gas pipelines, chemical processing and power plants.
Lower torque requirements

The V-port design ensures that less torque is required to open and close the valve, allowing for the use of smaller actuators, thereby increasing efficiency.
Blowout prevention design

This design prevents the stem from popping out of the valve body due to improper operation, ensuring safety and reliability.
A wide range of high quality materials

We offer a wide range of corrosion resistant and high temperature resistant materials, including traditional carbon steel and advanced materials such as Inconel and Monel, to meet the needs of different applications.
Wide applicability

Lipin V-shaped ball valves play an important role in natural gas, chemical, power plants and other areas where precise flow control is required.
Highlight quality

We pay attention to detail and precision in the manufacturing process, using advanced technology and processes to ensure the reliability of the valve and extend the service life.

Key components of V-shaped ball valve

The V-shaped ball valve mainly consists of the following six parts. These components ensure that the V-ball valve remains efficient and stable during operation and maintains precise flow control.

Valve Body

guides medium flow and provides structural support.

V-shaped sphere

The medium achieves precise flow control through V-shaped grooves on the sphere.

Valve stem

Quick opening and closing of V-ball driven by 90° rotation.

Valve seat

Contact V-shaped ball to form a seal and ensure no leakage.

Sealing surface

can be soft seal or metal seal, depending on the application requirements.

Actuator

Controls the movement of the valve stem to adjust the position of the V-ball for precise flow control. Actuators can be manual, pneumatic, electric, hydraulic, gas-hydraulic linkage or electro-hydraulic linkage.

Advantages of

V-shaped ball valve

01

Precise flow control

The V-shaped notch on the sphere enables precise, linear flow control and is ideal for applications requiring precise regulation.
02

Automatic pressure relief function

When the temperature of the medium in the valve chamber increases, the pressure can be automatically relieved only by the function of the seat to ensure the safety of the valve when conveying the liquid medium.
03

Lengthening stem option

The stem can be lengthened as required for installation or operation. The extended rod V-ball valve is especially suitable for urban gas and other applications requiring buried pipeline installation.
04

Flexible operation

The valve seat and stem bearing with low friction coefficient and good self-lubrication performance greatly reduce the operating torque of the valve. Therefore, even if the sealing grease is not provided, the valve can be operated flexibly for a long time.
05

Reliable stem seal

Dual seals ensure the reliability of the stem seal. The addition of graphite filler and seal grease injection minimizes stem leakage after fire.

Why choose V-shaped ball valve?

V-type ball valve adopts precise flow control design, the pressure acts on the outer side of the seat sealing ring to form an effective seal between the seat sealing ring and the valve body. When fully opened and fully closed, the sealing surface of the ball and the seat is isolated from the medium to prevent the erosion of the sealing surface when the high-speed medium passes through the valve.
